DSC-PGP-IO9 PowerG+ Input/Output Module

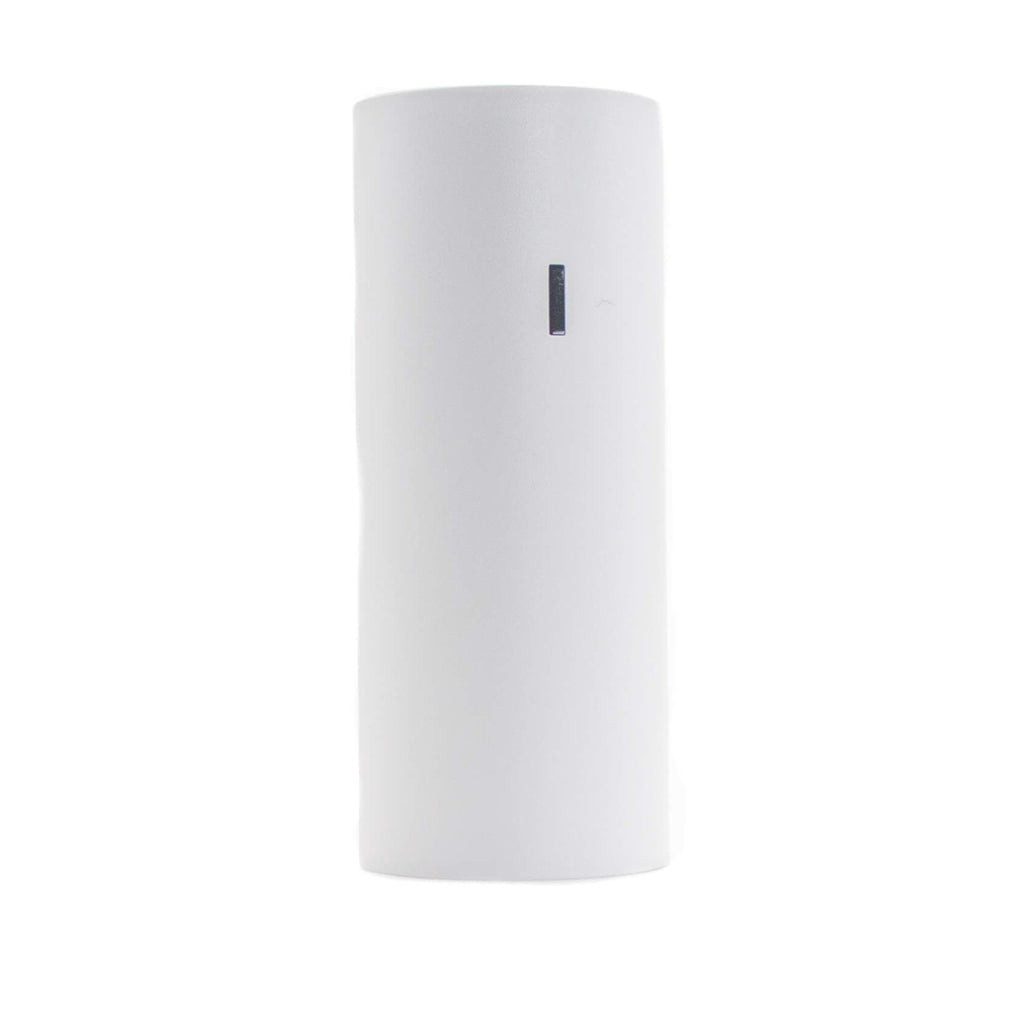

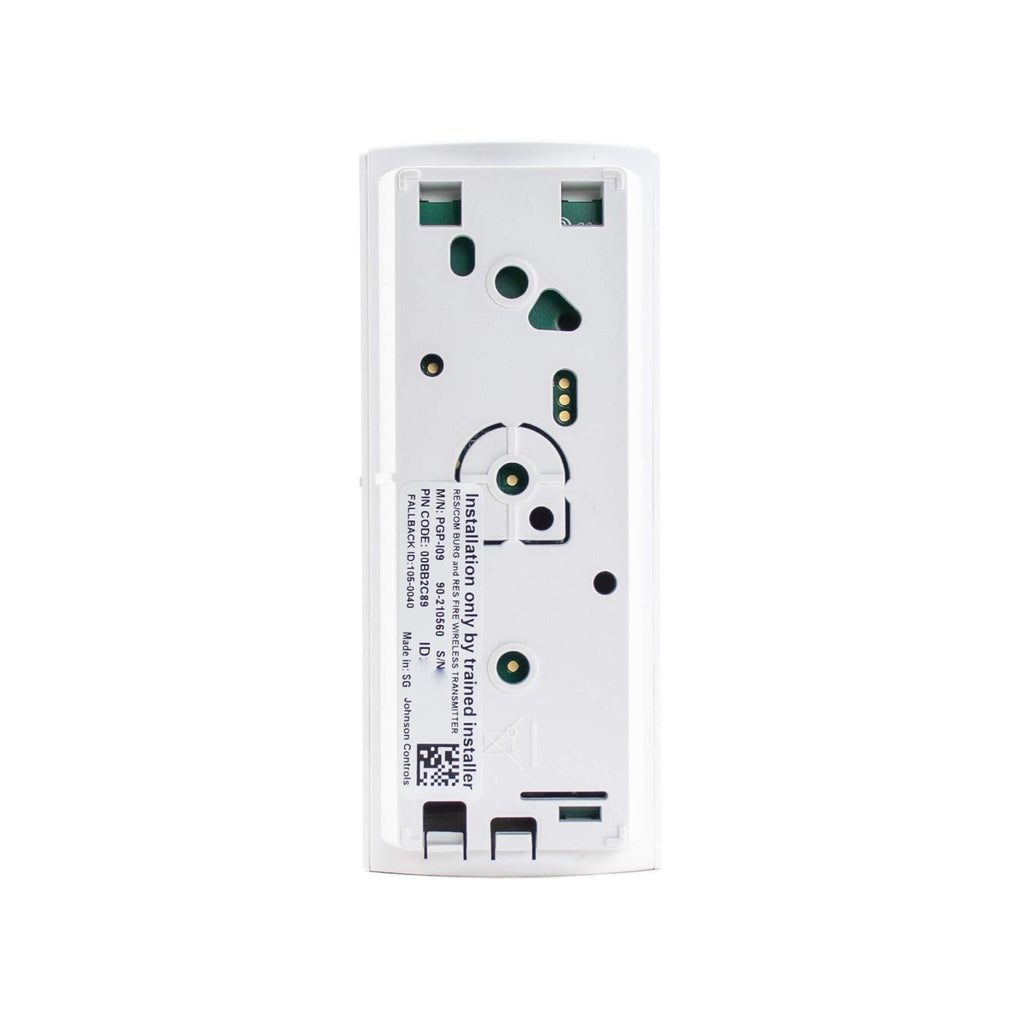

DSC-PGP-IO9  PowerG+ Input/Output Module

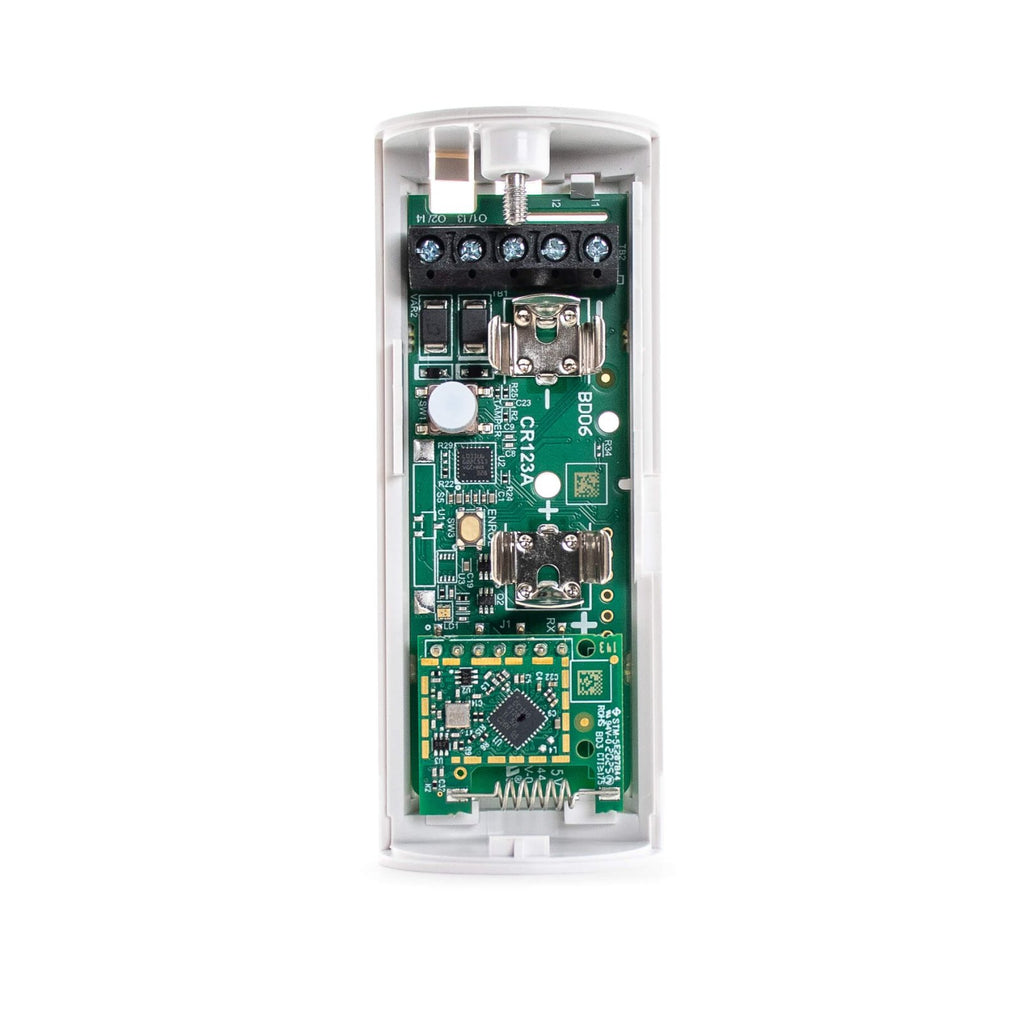

The DSC-PGP-IO9 is an incredibly versatile wireless device from the new PowerG + lineup. Using the PGP-IO9 allows you to wire up to 4 different devices to be used as either inputs or outputs with a compatible alarm system. There are numerous ways to utilize the PGP-IO9, including general-purpose automation. As a wireless PowerG + device, it offers exceptional range, so you can set it up wherever you may need it. By default, the PGP-IO9 offers two inputs and 2 outputs; however, all 4 terminal sets can be configured as inputs if desired. When using the PGP-IO9 for inputs, each input may be configured as any of the basic EOL settings: Normally Closed, Normally Open, EOL (with a resistor), or Double EOL (2 resistors). When an input circuit has been triggered, the PGP-IO9 generates a message on your alarm system to notify you that the connected device(s) have been triggered.

When using the PGP-IO9 configured with two inputs and two outputs, the outputs may be used to trigger external devices with dry-contact control inputs. Outputs may be used to create wireless triggers for applications such as automation for lights and garage doors, or you may configure the outputs to trigger on an alarm state so that when a smoke detector goes off, it triggers your fire suppression system. Both open-loop outputs on the PGP-IO9 are capable of putting out up to 1 Amp of current at 15VDC when activated. Outputs are assigned as PGMs within the system programming, and may be configured similarly to wired PGMs on the DSC or IQ systems.

DSC-PGP-IO9 Installation Manual
DSC-PGP-IO9 Spec Sheet

Specs:

Frequency Band - 868 to 869 MHz, 912 to 919 MHz
Maximum Tx Power - +14 dBm @ 868 MHz, +14 dBm @ 915 MHz
Modulation - GFSK
Communication Protocol - PowerG +
Battery Type - 3 V Lithium CR123A manufactured by GP or Duracell only
Battery Life - 3 years (typical use) for two inputs and two outputs configuration 5 years (typical use) for four inputs configuration
Low Battery Threshold - 2.4 V at room temperature 25°C (77°F)
Nominal Operating Voltage - 3 V
Minimum Current - 2 uA
Maximum Current - 70 mA
Operating Temperature - 0°C (32°F) to 49°C (120°F) UL/ULC evaluated
Storage Temperature - -20°C (-4°F) to 70°C (158°F) Not UL/ULC evaluated
Relative Humidity - Up to 93% non-condensing
Inputs - Wire Resistance: Up to 100 Ω. Wire Capacitance: Up to 1nF (maximum distance of 10 meters from the unit for 20 to 22 AWG cable)
EOL supervision resistors - (optional): 5.6 KΩ, can be field calibrated within the range of 2.5 KΩ to 12 KΩ
Outputs - Up to 15VDC (OFF state, open loop, ~20uA leakage current). Up to 1A (ON state, close loop, ~0.25V terminals dropout)
Dimensions - (LxWxD) 89 mm x 37 mm x 30 mm (3.5 in. x 1.5 in. x 1.2 in.)
Weight - (Including Battery) 53 g (1.9 oz)
Color - White
Auxiliary Input - EOL Resistor 5.6 KΩx
