ADC-SVR210-2TB Alarm.com 8-Channel Stream Video Recorder with 2TB HDD

ADC-SVR210-2TB Alarm.com 8-Channel Stream Video Recorder with 2TB HDD

$475.95

Quick Overview

Quantity

In Stock

Add to Wishlist

ADC-SVR210-2TB Alarm.com 8-Channel Stream Video Recorder with 2TB HDD

NOTE: To add an SVR to your Alarm.com Video Account you will need the Alarm.com SVR Add-on. You can find the monthly Add-on option we provide at the link below.
-Monthly SVR Streaming Video Service

The Alarm.com SVR210 is a more residential-friendly Stream Video Recorder than the CSVRs we carry. Coming in at a much lower price point, this model is designed for lower camera counts while providing the same Commercial grade features as the rest of the SVR lineup. This variant of the SVR210 provides 2TB of internal storage for up to 8 Alarm.com cameras connected to your Alarm.com Video account. It can record footage from both hardwired PoE and Wifi Alarm.com cameras, and recording time is tied directly to the video quality you set for each of your Alarm.com cameras. All footage recorded to the SVR210 can be viewed directly from the Alarm.com app or web portal logins. Events captured using your cameras set up recording rules will also indicate activity on your SVR timeline. To view a specific list of compatible Alarm.com cameras, please see the specifications for the device below, however, all Alarm.com PoE cameras and Alarm.com Wi-Fi cameras we carry on our website will work with the SVR210 (excluding Alarm.com Doorbell Cameras and the ADC-V729AC floodlight camera). If you plan to use Wi-Fi cameras with any Alarm.com SVR, it is best to also use the Alarm.com ADC-SG130 smart gateway to optimize your cameras' performance and connection speed to the SVR.

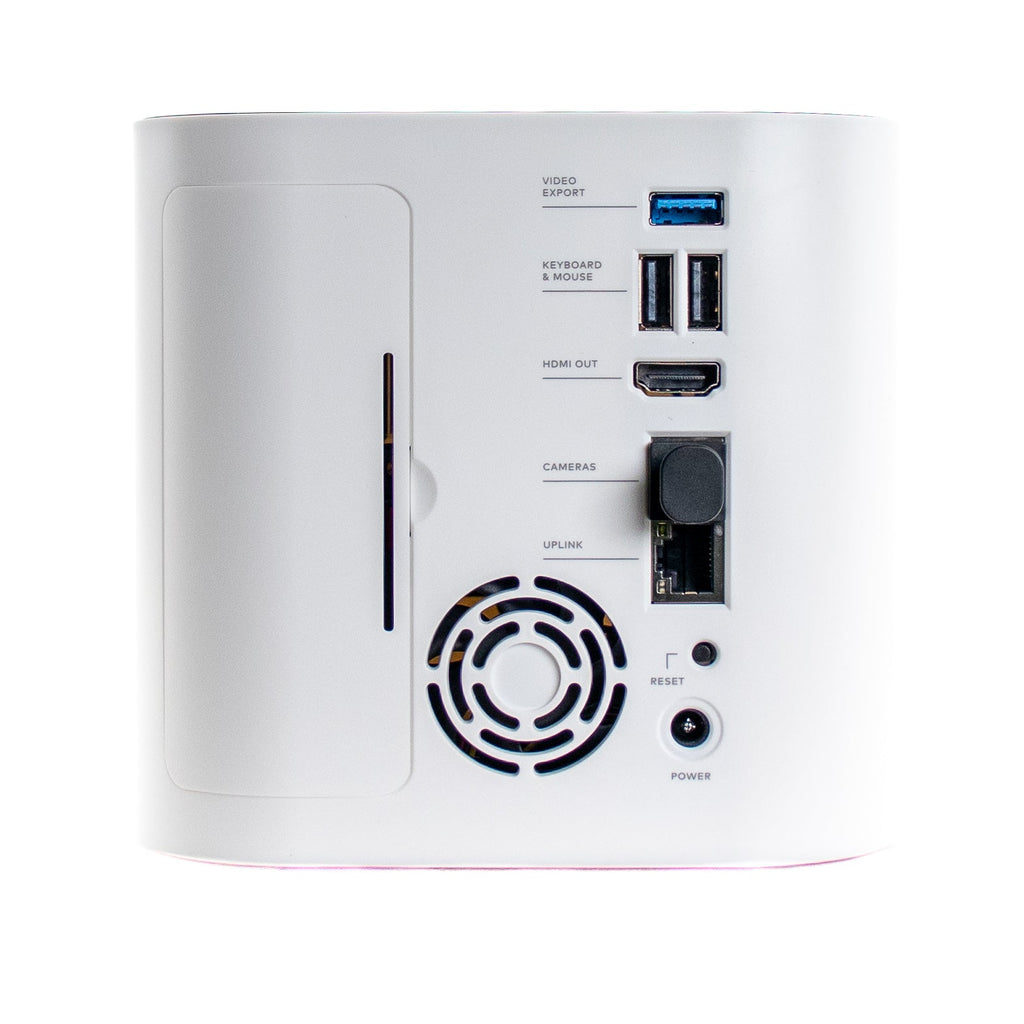

For video storage, the ADC-SVR210 supports both a 1TB or 2TB internal hard drive variant. To find the 1TB option please follow this link. The SVR210 provides 2 ethernet connections, one for your local network via a router, and the other is used for PoE cameras. With only one ethernet connection for cameras, utilizing a PoE switch such as the TP-Link TL-SF1005P will allow you to connect more cameras. Using the provided HDMI port, you will also be able to connect the ADC-SVR210 to a local monitor or TV giving you local viewing and access to the cameras connected to the SVR. With 3 USB ports, you can connect both a mouse and keyboard for local setups, as well as use one of those USB ports for exporting recorded video to a separate external drive if you desire.

ADC-SVR210 Installation guide

SPECS:

Recording channels - Up to 8 cameras
Video input - 8 channels, 70 Mbps total
Local display capabilities - Live view, recorded playback, clip export
Local display output - 1 x HDMI
Local clip export - Available (1 x USB 3.0 and 2 x USB 2.0)
Ethernet connectivity - 2 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) with status light LEDs
Dimensions (WxDxH) - 7.7 x 7.9 x 5.5" (14.5 x 20 x 13.9 cm)
Operating temperature range - 32°F to 104°F (0°C to 40°C)
Power adapter - DC 12V
Max weight - 2.55lbs (with 3.5", 2TB HDD installed)
Compliance - FCC Class A, IC, CE Class B, UL Listed, NDAA

Recommended Alarm.com PoE cameras:
-ADC-VC725
-ADC-VC726
-ADC-VC736
-ADC-VC825
-ADC-VC826
-ADC-VC836
-ADC-VC727P
-ADC-VC827P
-ADC-VC728PF
-ADC-VC838PF
-ADC-VC847PF
-ADC-VDB755P
Other supported cameras:
- Third-party PoE cameras (ONVIF S & VAPIX)

Indoor cameras connected via Ethernet:
-ADC-V521IR
-ADC-V522IR
-ADC-V523/523X
-ADC-V622

Indoor/Outdoor cameras connected via Wi-Fi:
-ADC-V515
-ADC-V521IR
-ADC-V522IR
-ADC-V523/523X
-ADC-V721W
-ADC-V722W
-ADC-V723/723X
-ADC-V724/724X
-Note: For best results, please connect the Wi-Fi cameras to the Smart Gateway (ADC-SG130) downstream from the SVR, or a high-performance Wi-Fi Access point upstream from the SVR.

QUESTIONS & ANSWERS

Can I use the same switch for my cameras and internet. Meaning my router plugs into a 24 port poe switch I use for distributing my connections to various devices suck as laptops, consoles, tv, wifi routers, etc. my plan was to use this for my cameras. I wasn’t sure if it would cause an issue taking one port off the switch and plugging it into my uplink and the other into the cameras port. Or do I need a dedicated switch just for the cameras?

The cameras would need to be connected directly to the SVR, or into a switch connected to the SVR for it to record them, but it would be fine to connect the SVR to the existing switch you have.
Will it record continuously and delete oldest videos once 2TB of storage is reached?

Yes, thats how all of the Alarm.com SVRs operate.
