BBB Business Review ADC-SEM300-PS-VZ-M System Enhancement Module For DSC PowerSeries (Verizon)

$208.95 $238.95

Quick Overview

The SEM300-PS-VZ-M replaces the previous model (SEM210) It is an LTE cellular and internet communicator from for the DSC PC1616, PC1832, and PC1864. The SEM300-PS provides dual-path communication to your system for service plans. Also includes a z-wave hub for automation service packages. This model runs on Verizon signal.

In Stock
Add to Wishlist

ADC-SEM300-PS-VZ-M System Enhancement Module For DSC PowerSeries (Verizon)

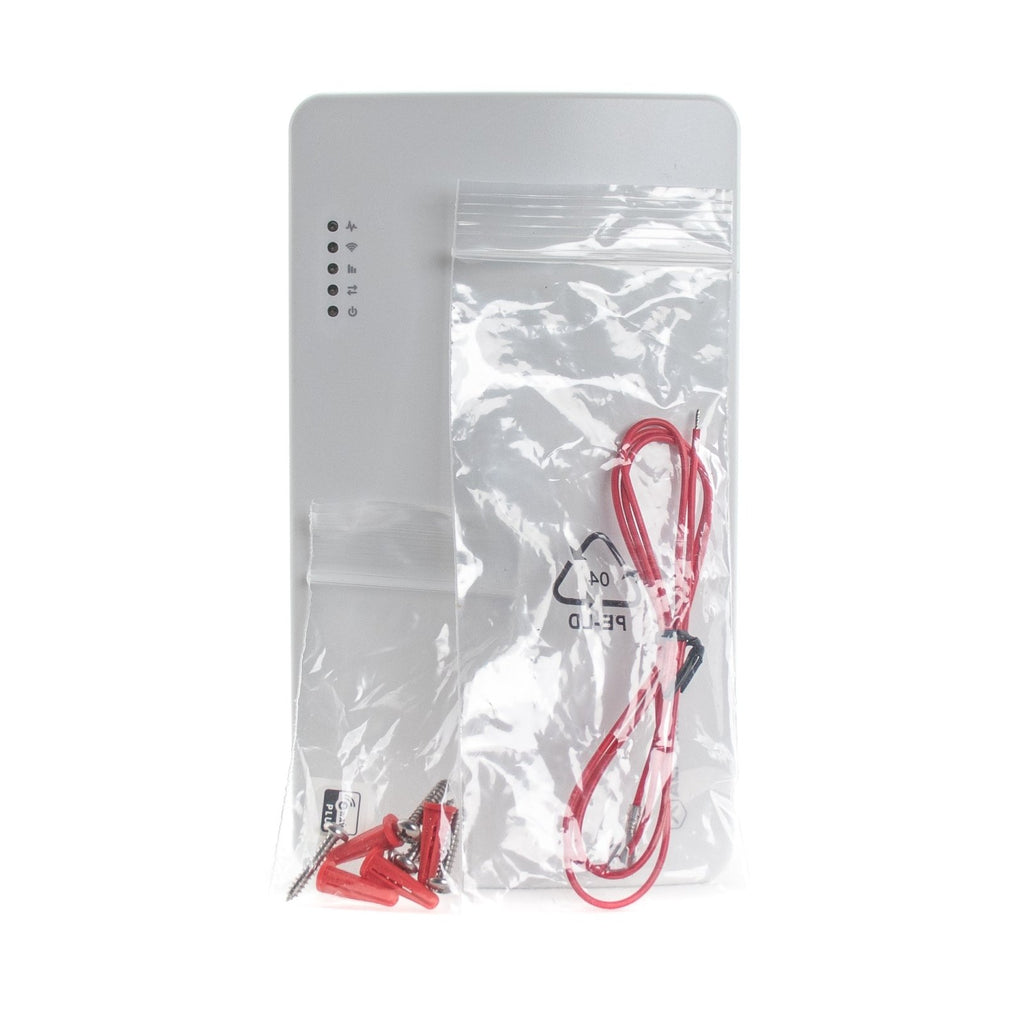

What you'll get:

1 - ADC-SEM300-PS-VZ-M
1 - Antenna
1 - Inline wired fuse
3 - Screws
3 - Wall anchors

The ADC-SEM310-PS-VZ-M is a dual path Verizon cellular and Broadband internet communicator for DSC PC1616, PC1832, and PC1864 alarm systems that are version 4.2 or higher. This will send signal over the 4G Verizon Network and has an optional hookup, via ethernet cable, for connecting to a router for IP communications.

This will operate from the panel's 12V power and will stay up and running during a power outage due to the backup battery of the alarm system it is hooked to. This module uses the black, green, and yellow terminals on the DSC panel for hook up and the positive wire will land on the positive terminal of your backup battery.

The SEM300 has indicator LEDs to give you status on the connection to the service and also features other LEDs to let you check on the status of the broadband connection and communications status.

 The ADC-SEM300-PS-VZ-M also features a Z-Wave control unit that you be able to utilize if you subscribe to the Residential Interactive Service and will give you the ability to create a Z-Wave network in your home for home automation devices such as lights, door locks, and thermostats.

Current Draw: 130 mA (standby) 2000 mA (alarm transmission)

Cellular Network: Verizon Dual Band 4G LTE

Z-wave frequency: 908.4MHz
Panel Interfaces: 3 wire bus connection 12V power to panel battery + Module Indicators:
One module/panel communication status LED, one module power LED, one automation LED, three wireless communication status LEDs

SEM Circuit Board Indicators:
One LAN LED, one processor LED, one COMM fail LED

Operating Temperature: 32 to 120°F (0 to 49°C)

Storage Temperature: -30 to 140°F (-34 to 60°C)

Humidity: 90% relative humidity non-condensing

Enclosure Dimensions (L x W x D).............7.5 x 4.25 x 1.5” (19.05 x 11.43 x 3.81 cm)

Enclosure Color: White
Case Material: High-impact, ABS plastic

ADC SEM300 Quick Install Guide
ADC SEM300-PS Troubleshooting Guide

    Installation guide
    Specifications Sheet
