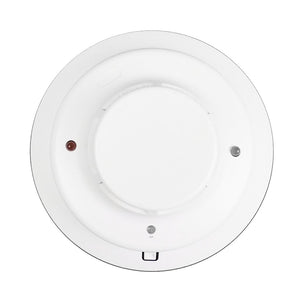

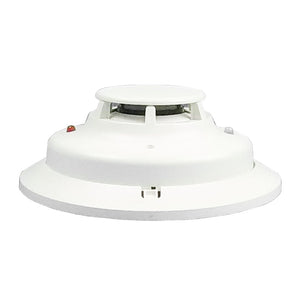

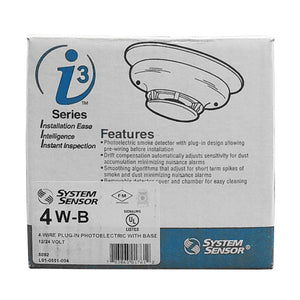

System Sensor 4W-B Four Wire Smoke Detector

Quick Overview
System Sensor 4W-B Four Wire Smoke Detector 4 wire type smoke detectors are compatible with all alarm systems, unlike the less popular 2 wire type. We're often asked which type...

Available : In Stock

$34.00

Ship out same day or within 24 hours
Add to Wishlist

System Sensor 4W-B Four Wire Smoke Detector

4 wire type smoke detectors are compatible with all alarm systems, unlike the less popular 2 wire type. We're often asked which type we recommend, 2 wire type or 4 wire type. If you are going to have only a few and they will all be on one level, we recommend 2 wire type. On the other hand if you will have smoke detectors on more than one level, will have more than a four or five, or you need them with built in sounders we then recommend the 4 wire type.


Specifications

Detection: Photoelectric
Wiring: 4-wire
Operating Voltage: 12/24 V non-polarized nominal, 8.5 min. to 35 max.
Maximum Ripple Voltage: 30% of nominal (peak to peak)
Alarm Current: 20mA max. @ 12V, 23mA @ 24V
Standby Current: 50 µA max. avg.
Alarm Contact Ratings: 0.5 A @ 30V AC/DC
Temperature Range: 32° to 120°F (0° to 49°C)
Humidity Range: 0% to 95% RH, noncondensing
Sensitivity: 2.5%/ft. nominal
Wiring Gauge: 14-22 AWG
Dimensions: 2.0" (51mm) H x 5.3" (127mm) Dia.
Weight: 6.3 oz. (178 g)
