DSC PowerSeries PG9920 PowerG 915Mhz Wireless Repeater.

$138.95

Quick Overview

The PG9920 is a wireless signal repeater designed to extend the range of your PowerG system. If you have trouble getting any devices to connect where they are located a repeater can be used to effectively double the range of the signal.

In Stock
Add to Wishlist

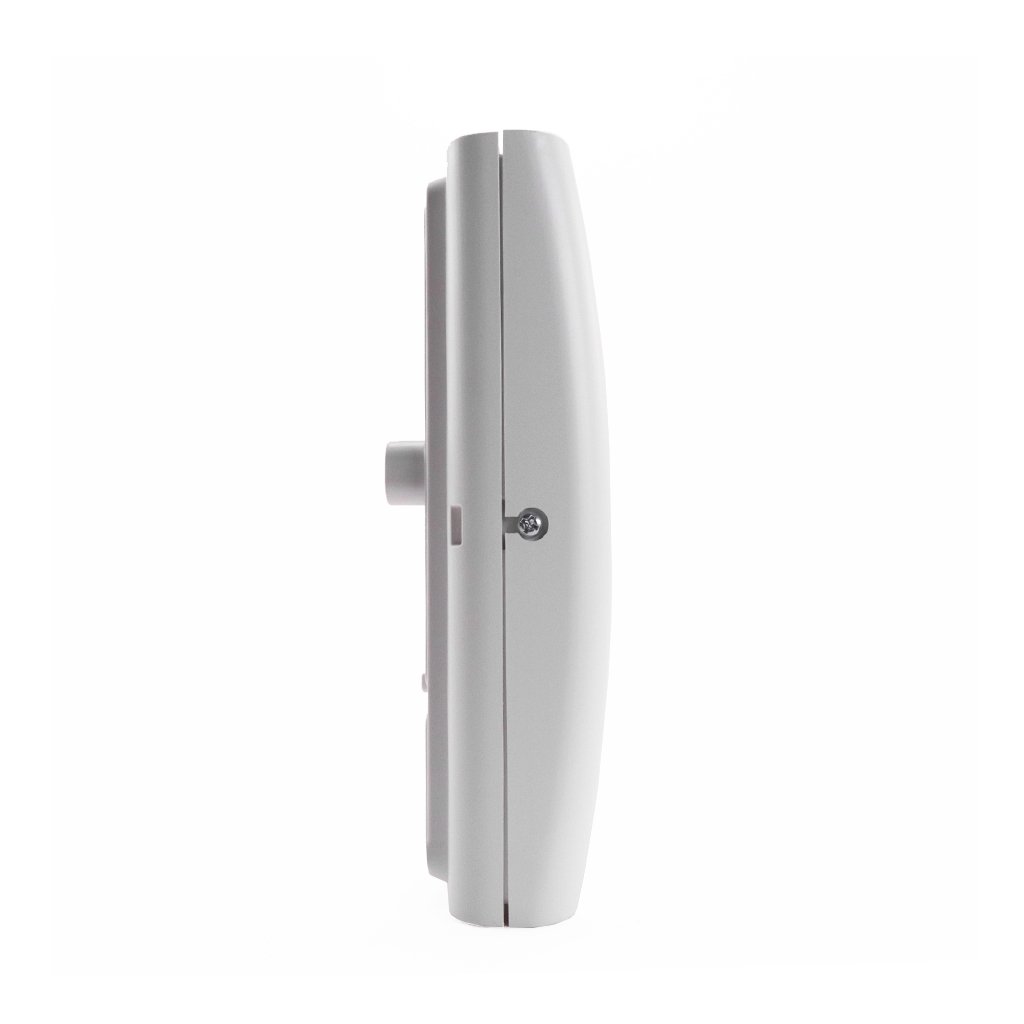

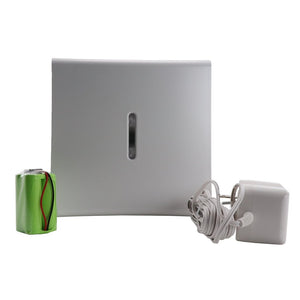

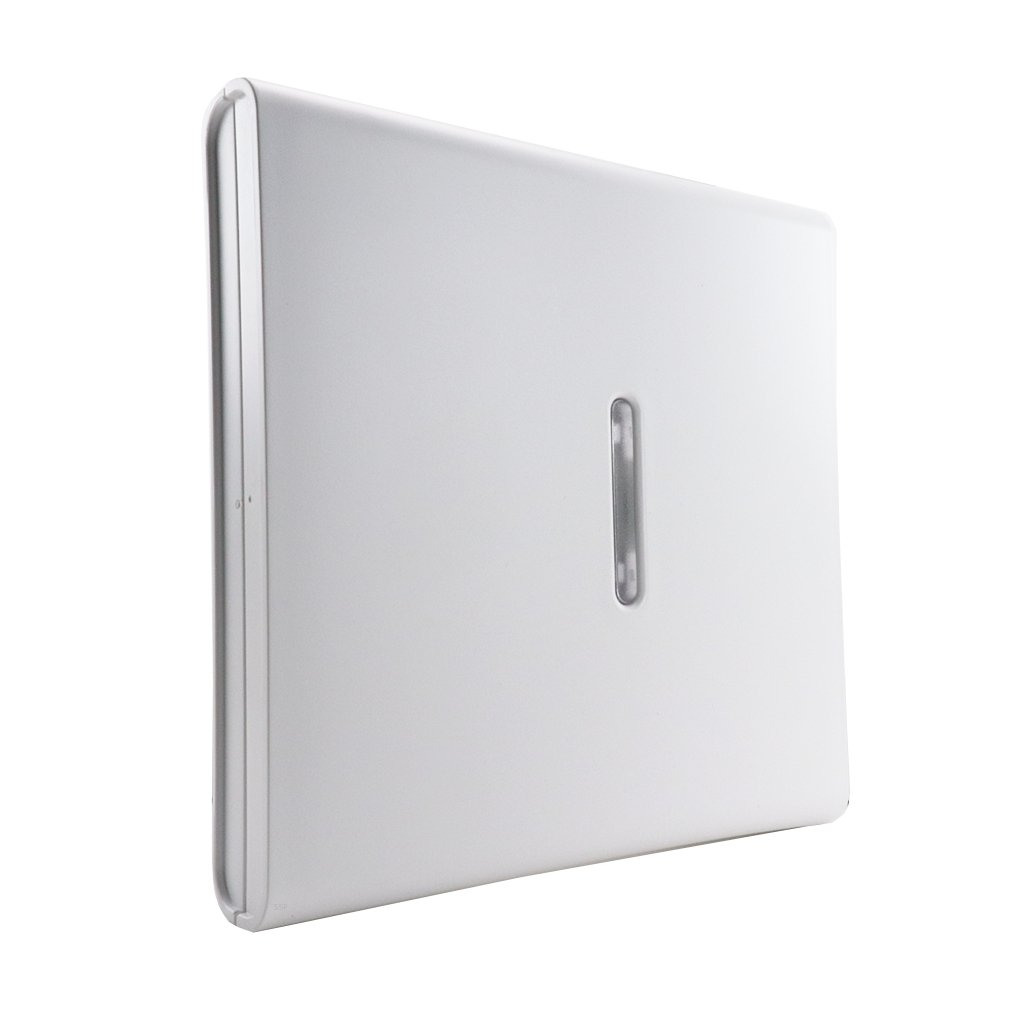

DSC PowerSeries PG9920 PowerG 915Mhz Wireless Repeater

The Power G PG9920 is a wireless repeater that will extend the wireless range of your DSC NEO panel so that you can extend the reach of your wireless device installation. This will relay signals coming from devices that may be beyond the panel's original range. You can also use this as a signal booster for devices that are within the panel's usual range but are experiencing interference. You may use up to 8 of these per system.

Messages from devices being carried by the PG9920 include:

  • AC Fail
  • Low Battery
  • End Of Life
  • Tamper
  • Supervision

Specifications:

Dimensions 161 x 161 x 50mm (6.44 x 6.44 x 1.75in)
Battery Type 4.8V, 1300mAh Ni-MH rechargeable battery
Battery Backup 48 hours
Weight 470g (16.5oz)
Operating Temperature -10°C to 55°C (14°F to 131°F)

DSC PG9920 Installation manual
DSC PG9920 Specifications sheet

QUESTIONS & ANSWERS

Ask a Question
  • Can a repeater help with transmitting an alert signal to a wireless indoor or outdoor siren like 1/2 mile away from the host location?

    It's impossible to say for certain because of building material and obstructions between the repeater and siren, plus a 1/2 mile is quite a distance. That said, Power G wireless is the best on the market now for range and a repeater will certainly extend an already very good range of the PowerG devices. With direct line of sight and no obstructions a 1/2 mile is well within the spec of PowerG, but any obstructions will reduce range considerably.

  • Can the repeater be used with the power g transceiver keypad? Or it needs the actual host?

    Yes, it can repeat signals from the tranceivers built into a keypad or the standalone host module.

  • Can i use it to repeat any others 915MHz signals?

    No, this only works with DSC / Qolsys Power G wireless.

  • From control panel(DSC Neo hs2032) host module then repeater. Does repeater to repeater send to host?

    The repeater can only repeat to the Host module. A repeater cannot repeat thru another repeater so while you can use multiple repeaters on a system, all repeaters must themselves be within range of the Host module.

Features

Extends the overall wireless range
LED indications for power failure, activity, and installation performance diagnostics
Compact and easy to install
Front and back tamper protected
