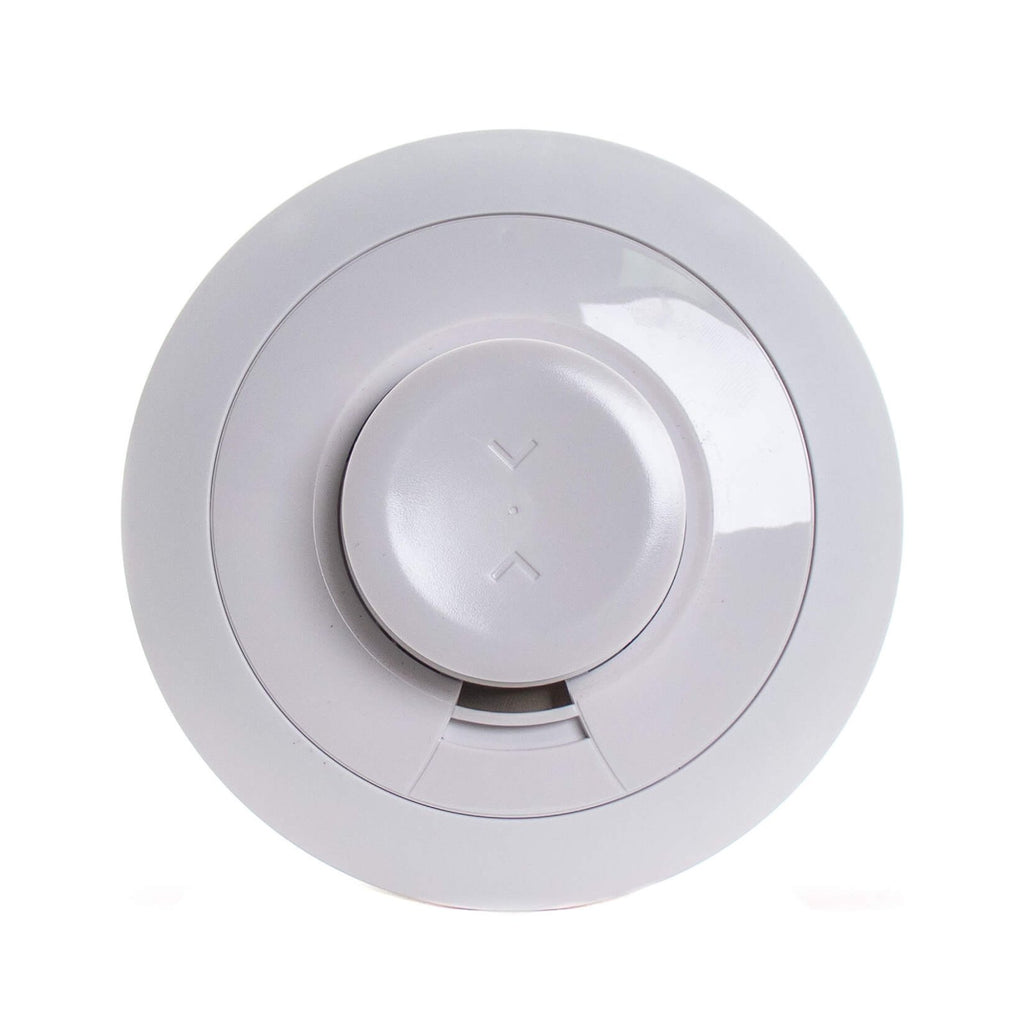

DSC PGP9976 PowerG+ Wireless Smoke and Heat Detector

DSC PGP9976 PowerG+ Wireless Smoke and Heat Detector

The PGP9976 is the PowerG+ wireless smoke and heat detector that is taking the place of the PG9936 PowerG model. This detector offers all the new PowerG+ features, including Over-the-air updates, battery life reports, and 2-factor authentication when used with PowerG+ compatible systems. As with all PowerG devices, it includes 128-bit AES encryption and wireless range reaching up to 1.2 miles open-air. The PGP9976 features reliable photoelectric technology for smoke detection. In addition, the PGP9976 includes a thermal fixed 135°F heat sensor, as well as a thermal rate-of-rise detector that triggers upon temperatures rising at 15F degrees/minute. Between the 3 detection methods, you can feel secure knowing the PGP9976 will trigger at the earliest signs possible, without fear of false alarms. Each detector includes an 85db sounder, which will sound alongside the alarm system to ensure everyone in the vicinity will hear the alert and be able to act. The PGP9976 batteries are rated to last up to 6 years during normal use, and now take 2 CR123A batteries instead of AAAs as the previous model did, which makes replacing batteries in all of your sensors less of a hassle. The PGP9976 has also been designed for easier cleaning by making the detector simpler to take apart for deep cleaning, which pairs well with its dirty detection notifications.

Smoke detectors are susceptible to false alarms in areas where dust, smoke and steam are common, such as attics, garages, and kitchens. For those locations we recommend using the PGP9979 PowerG+ heat detector instead.

PGP9976 Installation Manual - Will be posted upon publication
PGP9976 Data Sheet

Sensor Types - Thermistor: High temperature range 135˚F ± 4˚F or 58˚C +/-
4˚C ROR: 15˚F / min when > 104˚F or 8.3˚C/min when > 40˚C Photoelectric (Optical)
Integrated Head Removal Tamper Switch - When head is removed a signal can be sent to the panel/hub via the RF module
Sound Level - Minimum output 85dBA at 3m. The sounder contacts are soldered
directly to the piezo disc for additional security
Button - Test Checks the sensors, electronics, battery and horn
Silence Function - Silences nuisance alarm (automatically resets after approximately 10 minutes)

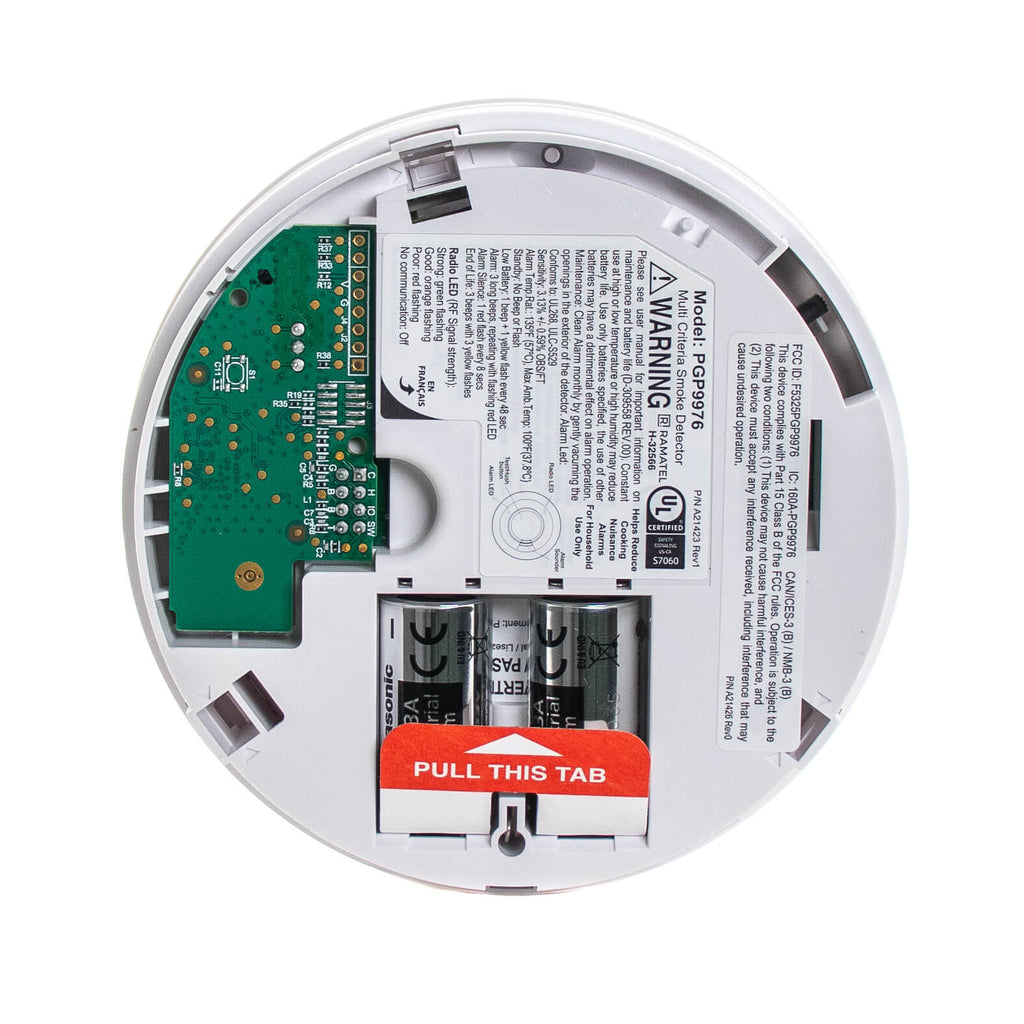

Power Supply - 2 x CR123A batteries
LED Indicators - RED - Power up, button test, in alarm, in hush, memory
YELLOW - Power up, low battery, sensor fault, end of life
Operating Temperature - 40˚F - 100˚F¹ (4.4˚C to 37.8˚C)
Humidity Range - 15% - 95% Relative Humidity (non-condensing)
Product Dimensions - 120mm (4.7") x 46mm (1.8')
Weight - 8.64 ounces or 245g (including packaging)
