Alarm.com ADC-SWV100 Smart Water Valve

$269.95

Quick Overview
In Stock
Add to Wishlist

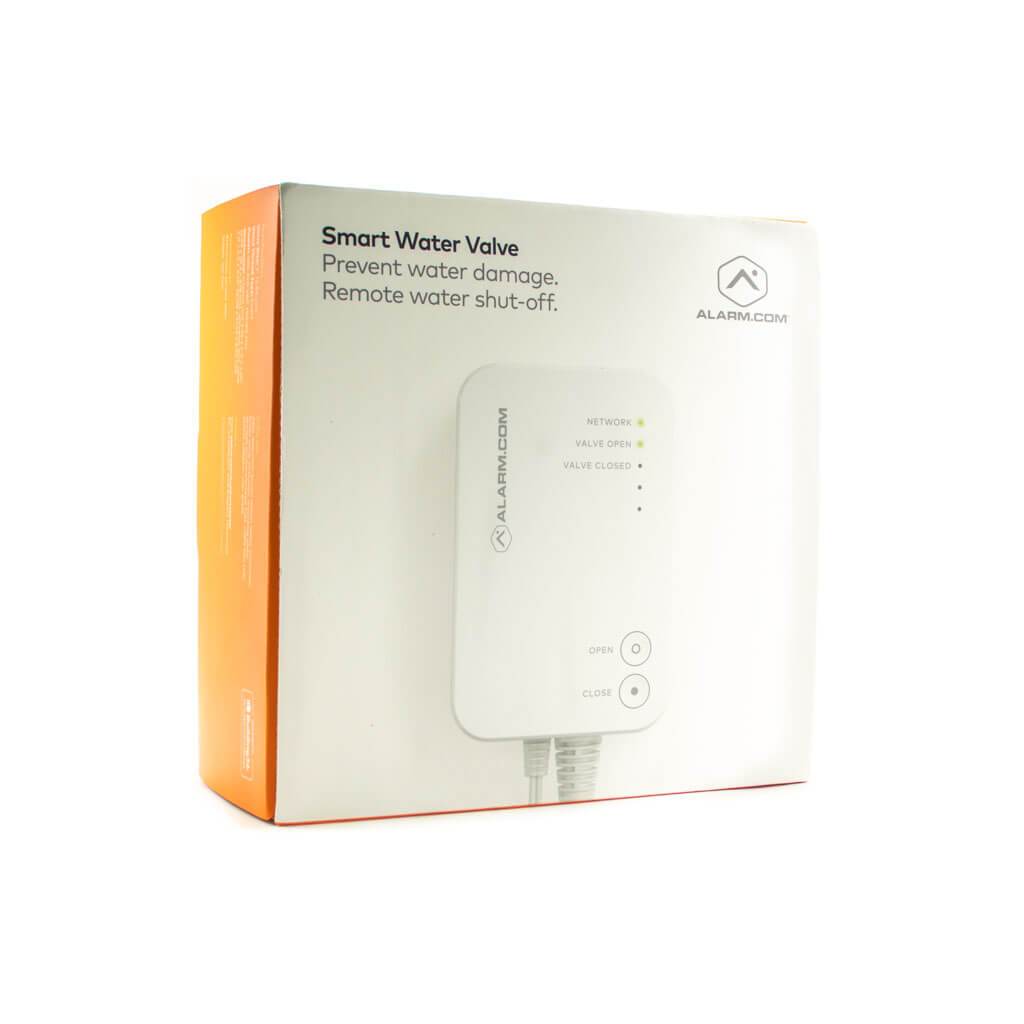

 Alarm.com ADC-SWV100 Smart Water Valve

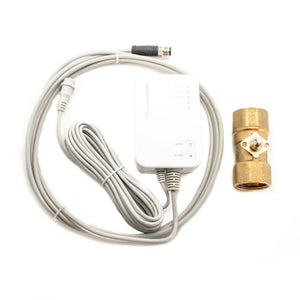

What you get:

  • ADC-SWV100 Control Unit

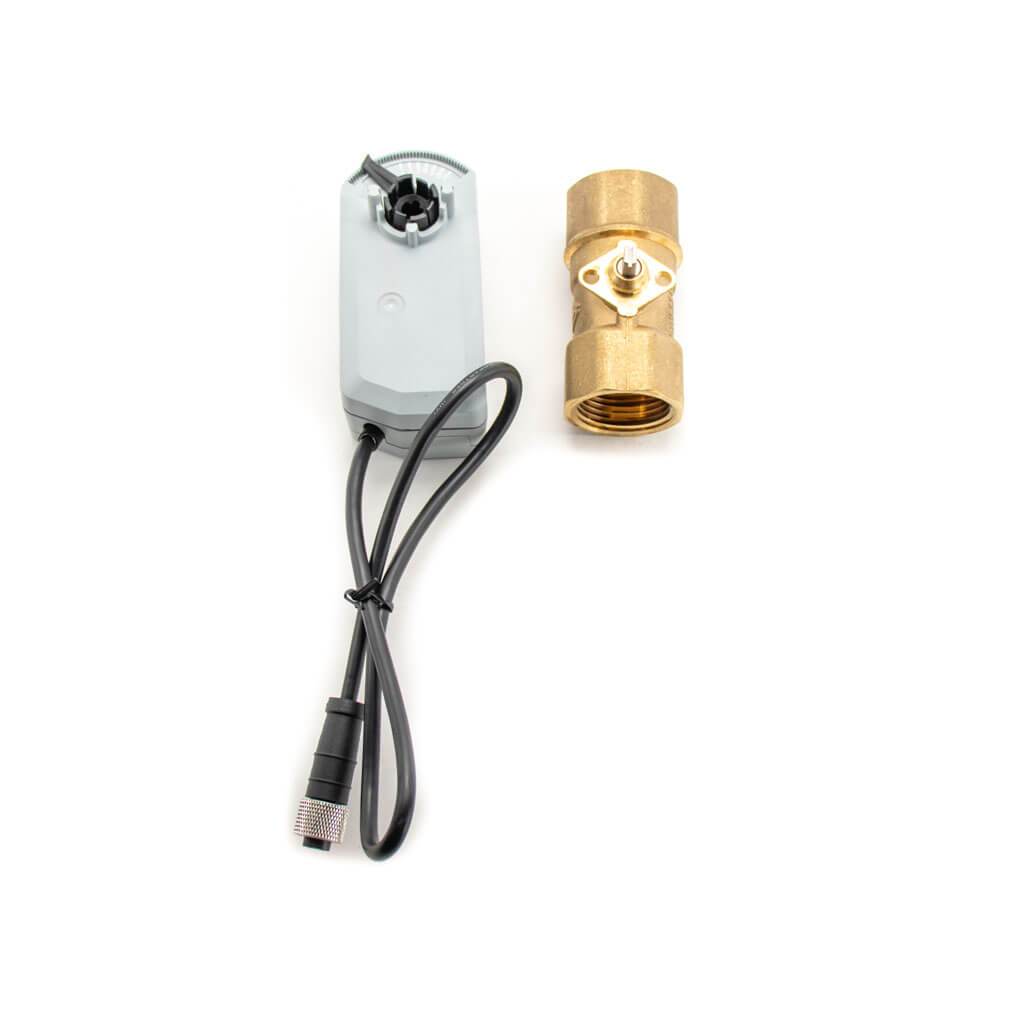

  • Brass valve
  • Actuator
  • Mounting plate
  • Drywall anchors & screws (x2)
  • Cable ties (x3)

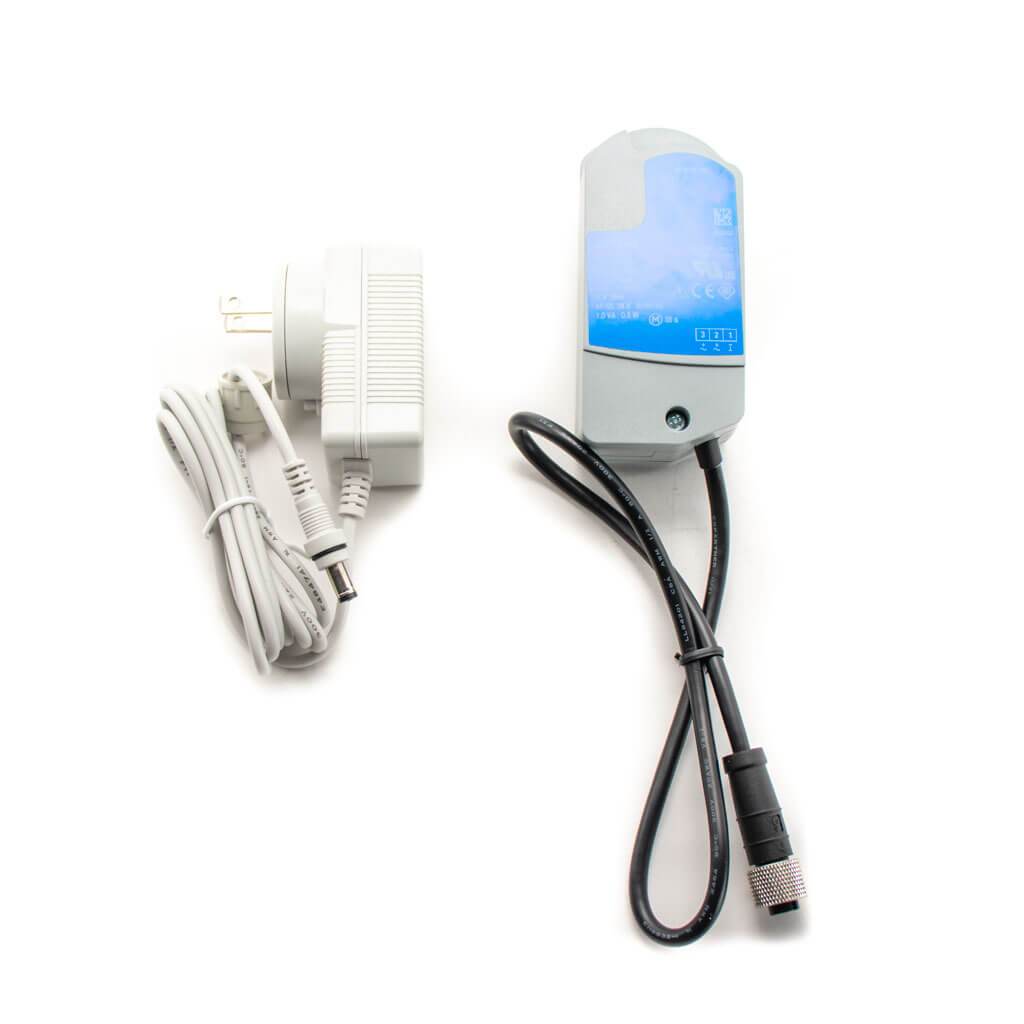

  • Power adapter
  • User guide

The Alarm.com SWV100 Smart Water Valve is a Z-Wave water control mechanism that helps you control water flow whether you at home or away by using the Alarm.com Interactive with Automation service. This valve will allow you to open it and close it remotely using your Alarm.com app. You can also set a scene for the valve to automatically close when used in conjunction with a water/flood sensor or based on armed status if you wish.

You'll install this valve in line with the water supply line coming into your home. You'll then connect the control unit to the valve and enroll it in your Z-Wave network. The unit is powered from a 100-240 VAC (50/60 Hz) power source. The valve measures 1 inch in diameter and has female NPT threading.

The control unit measures 2.75 x 4.0 x 1.25” and has a 19.7 ft power supply cable. The valve and actuator measure in 2.0 x 4.5 x 3.75”. These are great for folks who have Z-Wave control capability and who travel and would like to have some added peace of mind.

ADC-SWV100 Installation

ADC-SWV100 Data sheet




QUESTIONS & ANSWERS

Ask a Question
  • Does ADC-SWV100 link directly to my 2GIG-SP1-GC3 panel? I currently have 8, 2GIG water sensors positioned throughout the house and they are working fine with the 2GIG system. In fact, they already detected two leaks and sent me an alarm before the water did any damage. Now it is time to add the auto shut-off!

    Partially, yes. The Z-wave connection from the water valve connects to the Z-wave card in your panel, however, the automation controls and enrollement are handled through Alarm.com. We're not familiar with 2GIG though, so there may be some control you gain directly through the panel, but primarily the valve shutoff will be in response to Alarm.com noticing a water alert has been triggered.

  • Alarm.com ADC-SWV100 Smart Water Valve: Is the system programed to periodically cycle the valve to ensure the ball value remains working?

    Yes, once per day the SMV100 will run a 15 second "valve check" where it will close and open the valve to make sure it's free of restrictions.

  • My water pipe is 3/4 inch. Is this device compatible?

    The ADC-SWV100 is a 1 inch valve, so with some modification to your current pipe you could make it work for shutting of your water flow. However, I would not recommend using the ADC-SWM150 with the included water flow meters as your smaller pipe may throw off the readings of the sensors.
