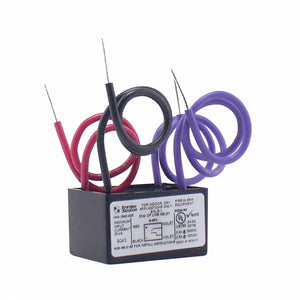

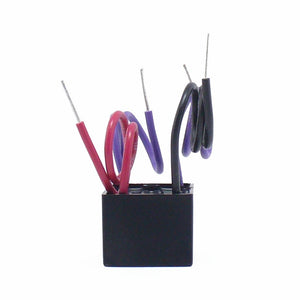

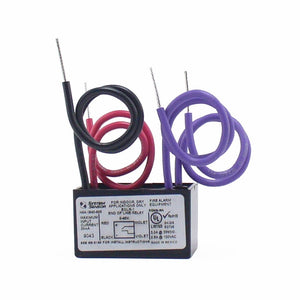

System Sensor SYS-EOLR1 Power Supervision Module For 4 Wire Smokes

$33.95

Quick Overview
In Stock
Add to Wishlist

System Sensor SYS-EOLR1 Power Supervision Module For 4 Wire Smokes

Model EOLR-1 is an epoxy encapsulated single pull single throw (SPST) normally open relay that is activated by 9 to 40 VDC. This relay can be used as an end of line device in fire alarm systems, e.g., to supervise power supplies.

The System Sensor SYS-EOLR1 Power supervision module is a single pull single throw (SPST) normally open relay that will be activated by voltages between 9 to 40 VDC. You'll basically use this as a power supervision relay.

Specifications

Operating Voltage: 9 to 40 VDC ( 9 to 35 Vrms for unfiltered full wave rectified supplies )
Operating Current: 20 mA max.
Operating Temperature Range: –22ºF to 140ºF (–30ºC to 60ºC)
Humidity: 10 to 93% RH non-condensing
Wire Length: 8″ min. (203 mm)
Dimensions: 0.91″H x 1.65″W x 1.22″D
(23 mm H x 42 mm W x 31 mm D)
Contact Ratings: 120 VAC 0.5 A max. (resistive load)
30 VDC 3A max. (resistive load)

QUESTIONS & ANSWERS

Ask a Question

  • Does a normally open EOLR-1 close when power is removed?

      No, when a contact is labeled "normally open" it means the circuit is normally open in its natural state, i.e. without power or a magnet in the case of a door contact.
