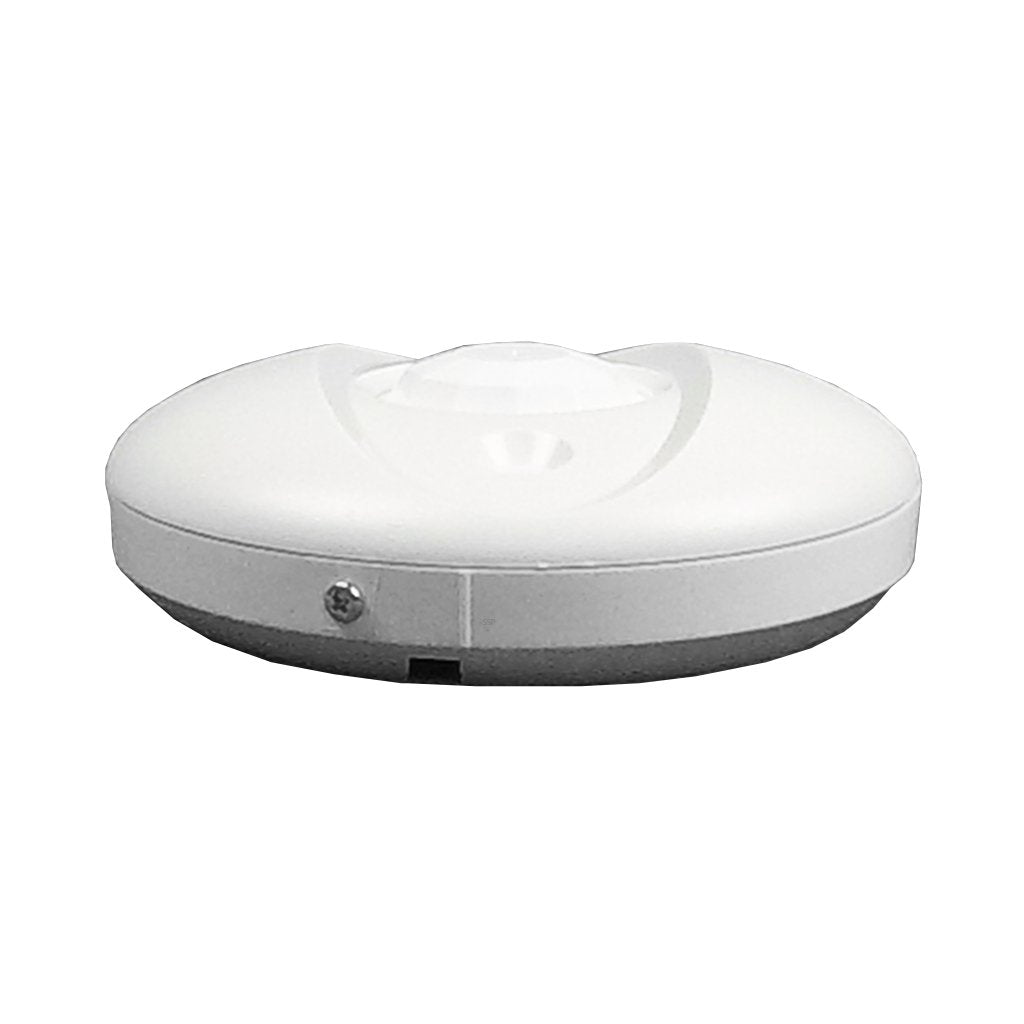

DSC BV500GB Bravo 5GB Ceiling Mounted 360 Degree Motion Detector With Built-In Glassbreak

Quick Overview
DSC BV500GB Bravo 5GB Ceiling Mounted 360 Degree Motion Detector With Built-In Glassbreak The DSC Bravo 5GB is a Bravo 5 360 degree ceiling mouned motion that has a DSC...

Available : In Stock

$49.29

Ship out same day or within 24 hours
Add to Wishlist

DSC BV500GB Bravo 5GB Ceiling Mounted 360 Degree Motion Detector With Built-In Glassbreak

The DSC Bravo 5GB is a Bravo 5 360 degree ceiling mouned motion that has a DSC Acuity 100 glassbreak sensor built into it. This combo unit offers a great cost savings of having both built into one unit if you are looking at using both types of devices on your alarm system.

Specifications:

Electrical
Input Voltage 9 - 14.5 VDC
Current (typical) 38/35 mA (alarm on/off) @12VDC
Contact Rating
Alarm Relay (PIR) 0.1A @24VDC
Alarm Relay (Glassbreak) 1.0A @24VDC
Tamper Switch 0.1A @24VDC
Size (diameter x height) 4.6" x 1.4" / 117 mm x 36 mm
Motion Detector Range (diameter)
8 ft./ 2.4 m from floor 24 ft./ 7.3 m
10 ft./ 3.0 m from floor 30 ft./ 9.2 m
12 ft./ 3.6 m from floor 40 ft./ 12.2 m
Jumper Setting J1 Installer Test Mode
J2 Alarm Memory
J3 PIR Sensitivity
J4 Motion LED ON/OFF
J5 Glassbreak Detection Level *
Environmental/Immunity
RF Immunity (Not verified by UL) Radiated -10V/m +80% AM (@1KHz) from 80MHz to 1GHz
Conducted -10V +80% AM (@1KHz) from 150KHz to 80MHz
Transients @ wiring terminal 2.4KV @ 1.2joules
Operating temperature 32 -122°F / 0 - 50°C
Humidity 5 - 95% RH non-condensing (verified to 85% by UL)
