Honeywell FG1625F Glassbreak Detector

Quick Overview
Honeywell FG1625F Glassbreak Detector This is the flush mount version of the FG1625 from Honeywell that utilizes the Flex-Core processing that can distinguish between real breaking glass and false alarms...

$36.95

Ship out same day or within 24 hours
Add to Wishlist

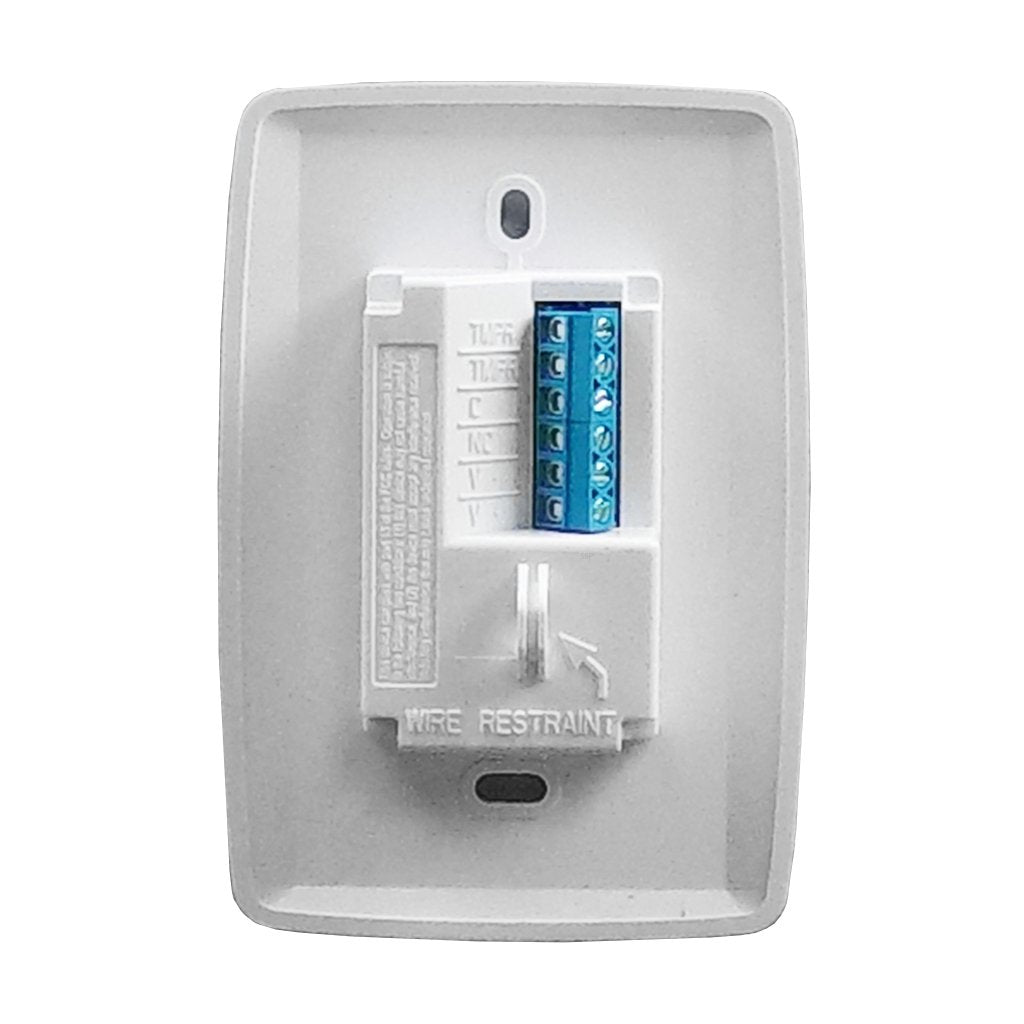

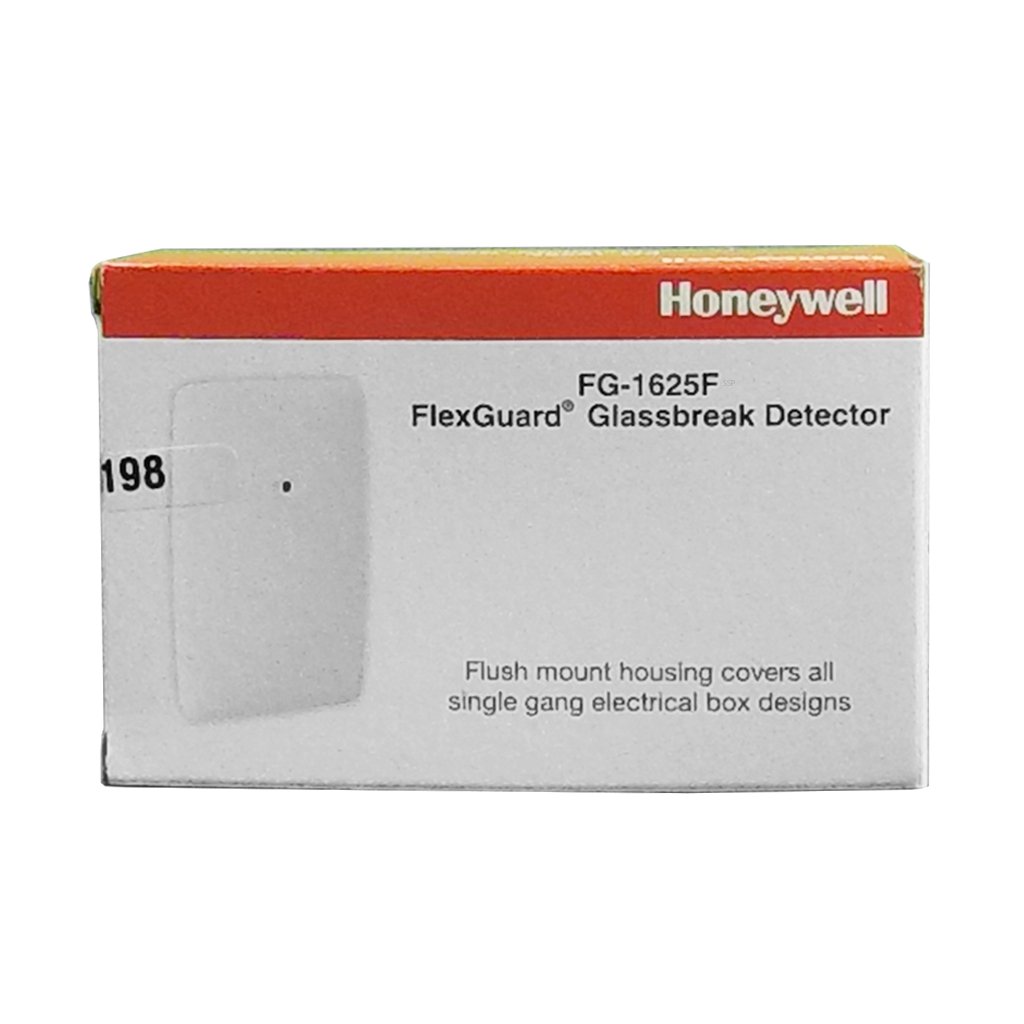

Honeywell FG1625F Glassbreak Detector

This is the flush mount version of the FG1625 from Honeywell that utilizes the Flex-Core processing that can distinguish between real breaking glass and false alarms with this new innovative technology. This unit is easy to setup and install and can be remotely tested with a simulator.

The FG1625F has two DIP switches internally that you can use to set the sensitivity to match the acoustics in the room that you install it in. There is no minimum range and the max range is twenty five feet. It can detect breaks on all kinds of glass.

Specifications:

Physical Dimensions
- White high impact ABS plastic housing
- Faceplate:
4.50" x 2.76" (114mm x 70mm)
- Rear cover:
2.65" H x 1.80" W x 1.20" D
(67.4mm x 45mm x 30mm)

Range
25' (7.6m) maximum, omnidirectional. Range is adjustable; no minimum range

Power Requirements
6 - 18VDC, 12mA typical at 12VDC; 22mA max (Latched LED)
AC ripple: 4V peak-to-peak at nominal 12VDC

Operating Temperature
14° to 122° F (-10° to 50° C)
Storage: -4° to 122° F (-20° to 50° C)

FG-1625F Installation manual
FG-1625F Data sheet

Features

Extended Information
