Seco-Larm SH-532BQ Multi-Tone Chime

$19.95

Quick Overview
In Stock
Add to Wishlist

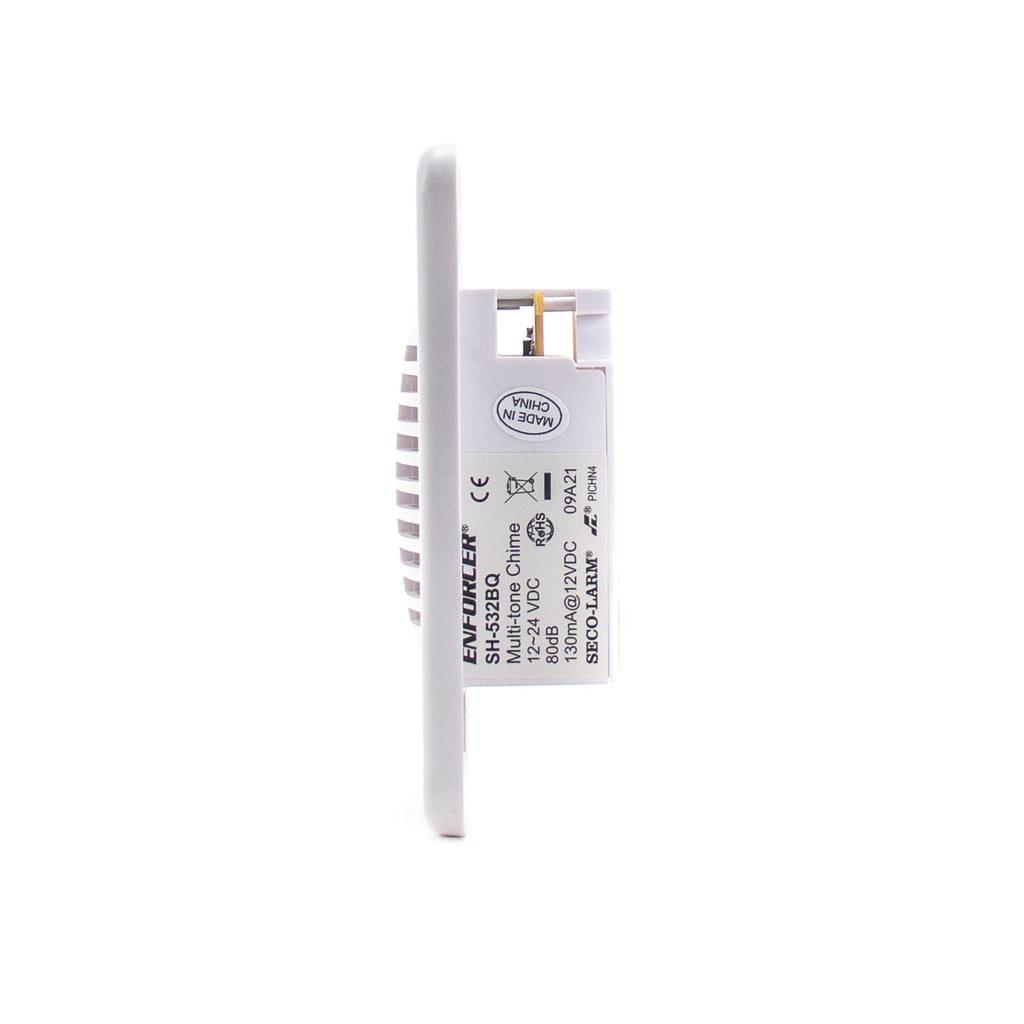

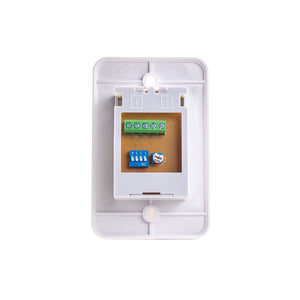

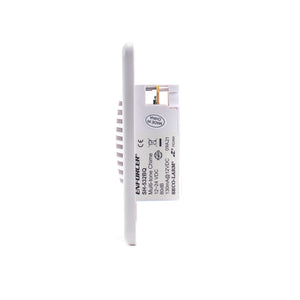

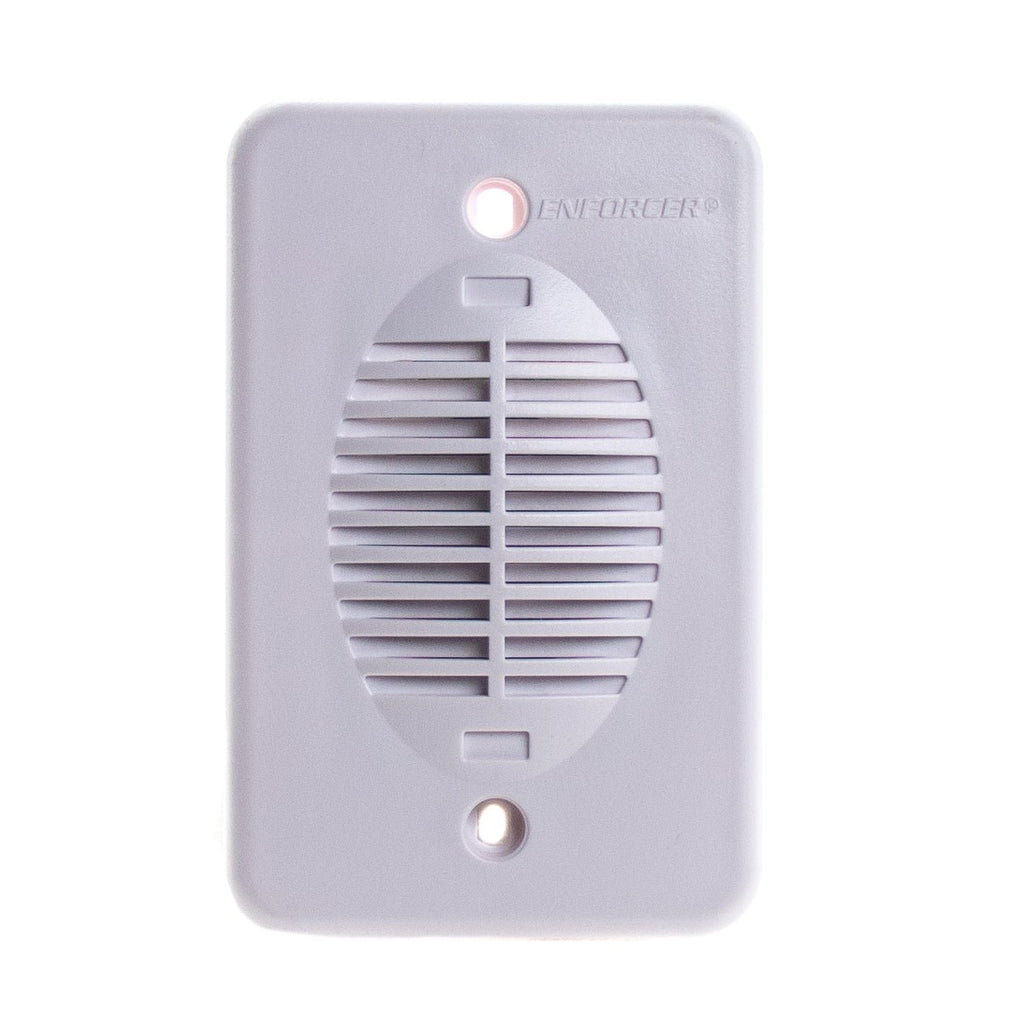

SECO-LARM's SH-532BQ is a multi-input, flush mount chime that can be used with any 12-24VDC system featuring an output of 130mA or higher. Utilizing the multiple inputs you can set this chime to play one of 3 tones: fading tone, dual tone, or single tone. You can also hook up more than one input to combine the tones following the sequence in which they are listed above. The SH-532BQ also features a volume potentiometer allowing you to adjust the volume from 80dB up to 88dB, and dip switches that adjust the number of times the chime sounds when power is supplied to the inputs. This chime fits in a single-gang wall box for easy installation.

Specs:

-Three-tone chime (fading, single tone, dual tone) any combination of tones selectable -12~24 VDC
-Sound output – 80~88 dB, adjustable
-Current draw: 130mA@12VDC
-Flush-mount, white plastic case
-Fits single-gang wall box
-45/8"x215/16"x19/16" (117x75x39mm)

Installation manual

QUESTIONS & ANSWERS

  • I currently have an ADT system and would like a louder siren for the basement. something simple and very loud.

    These chimes are handy for different sounds, but they are not all that loud. If you're looking for a simple loud indoor siren, something like the SS100H would be the better option: https://www.alarmsystemstore.com/products/15-watt-indoor-dual-tone-wall-mount-siren-ss100h

  • Would a magnetic door contact be able to trigger the chime?

    Not on its own. You would need a power supply of some kind to provide power to the chime, which could be triggered by the door contact via a relay. Regarding using both with an alarm system, if your system has programmable outputs, you should be able to set up the door/window zone to trigger an output to power the chime.
