Honeywell LTE-L57V Verizon LTE Communicator For Lynx L5210 / L7000


Quick Overview
In Stock
Add to Wishlist

Honeywell LTE-L57V Verizon LTE Communicator For Lynx L5210 / L7000

 What you get:

1 - Honeywell LTE-L57V Communicator
1 - Connector board
3 - Mounting screws

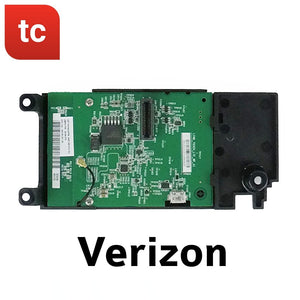

The Honeywell LTE-L57V cellular communicator is an add-on communications module that you can use for central station monitoring or Honeywell's Total Connect monitoring. This can be used if you have no phone line available or are using the L7000 which has no phone line dialer built-in.

The LTE-L57V measures 4.75" x 2.5" and the unit installs inside of the Lynx L5210 or Lynx L7000 wireless alarm panels using the included bridge connector board and the 3 mounting screws. The LTE-L57V is powered by 5V which is provided by the Lynx panel itself. The power draw for the unit is a meager 30 mA for standby and 490 mA during maximum transmitting power. The internal antenna in the L57V can operate on the LTE bands 12, 13, 5, 4, and 2.

The LTE-L57V will report alarm signals in full Contact ID format. The unit also has OTA (Over the air) firmware upgrade capability which means that it can be updated to newer versions when needed. This is also capable of handling 2-way voice support with central station so that if you have this feature in your monitoring package you can communicate directly with central station through the alarm system itself if needed.

Installation Sheet
Data Sheet
