DSC SDM-100 Two Tone Siren Driver

$24.95

Quick Overview
In Stock
Add to Wishlist

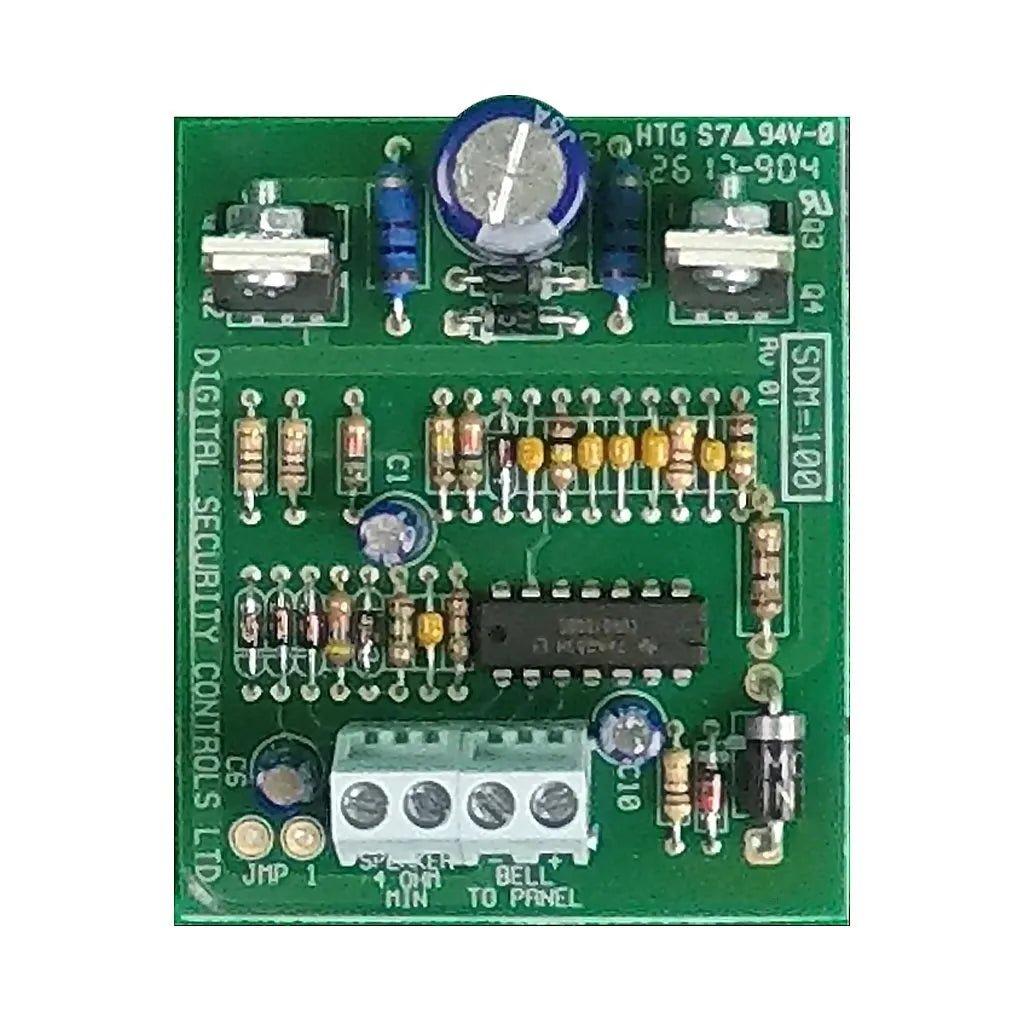

DSC SDM-100 Two Tone Siren Driver

The DSC SDM-100 is a two tone siren driver which means it can be wired to produce a steady alarm tone or a warble tone. This siren driver can handle up to 4 wired sirens and has a 4 ohm load capability. It can be used on systems with power ranges of 6 to 15 VDC and is considered a low current draw peripheral which means it draws minimal amperage.

This siren driver uses the pulse of an alarm system's bell outputs to differentiate between the steady and warble tone.

Specifications:

Voltage - 6 to 15 VDC
Current:

With 8 ohm load - .45 to 1.0 Amp
With 4 ohm load - .75 to 2.0 Amp

dB Output:

With 8 ohm load - 110 to 116 dB
With 4 ohm load - 112 to 119 dB

Mounting - Double-sided tape (included)

Dimensions - 2.25" x 2.75"

QUESTIONS & ANSWERS

Ask a Question
  • On my older PowerSeries 1832 alarm system I was told I needed a separate power supply and 12V battery to use an external outside siren. Is this no longer the case with the NEO Alarm system?

    Using an outside siren doesnt require the additional power supply module by default, however, if you have other sirens connected to the main board of the system you are likely over the power draw limit, forcing you to add the power supply for the additional outdoor siren. If that is the case, then the setup would need to be the same on the NEO as well.
