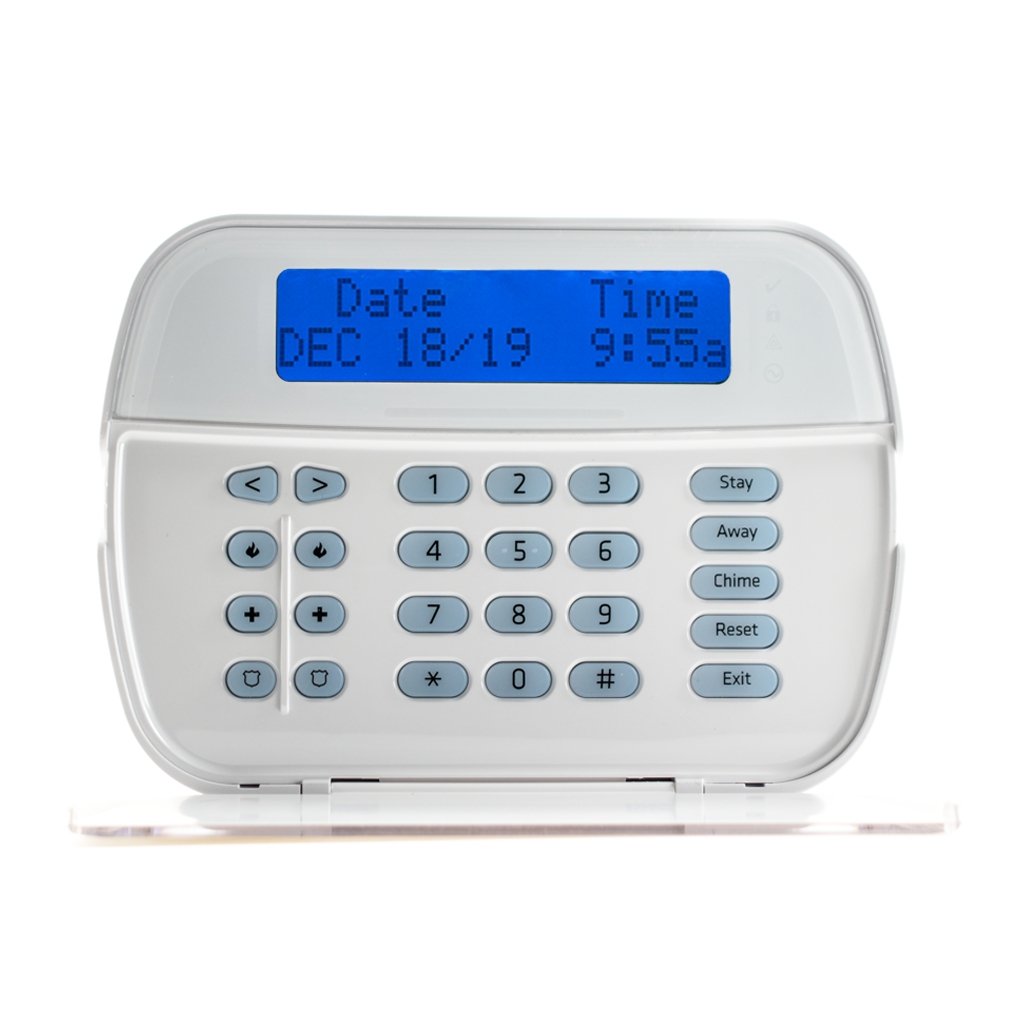

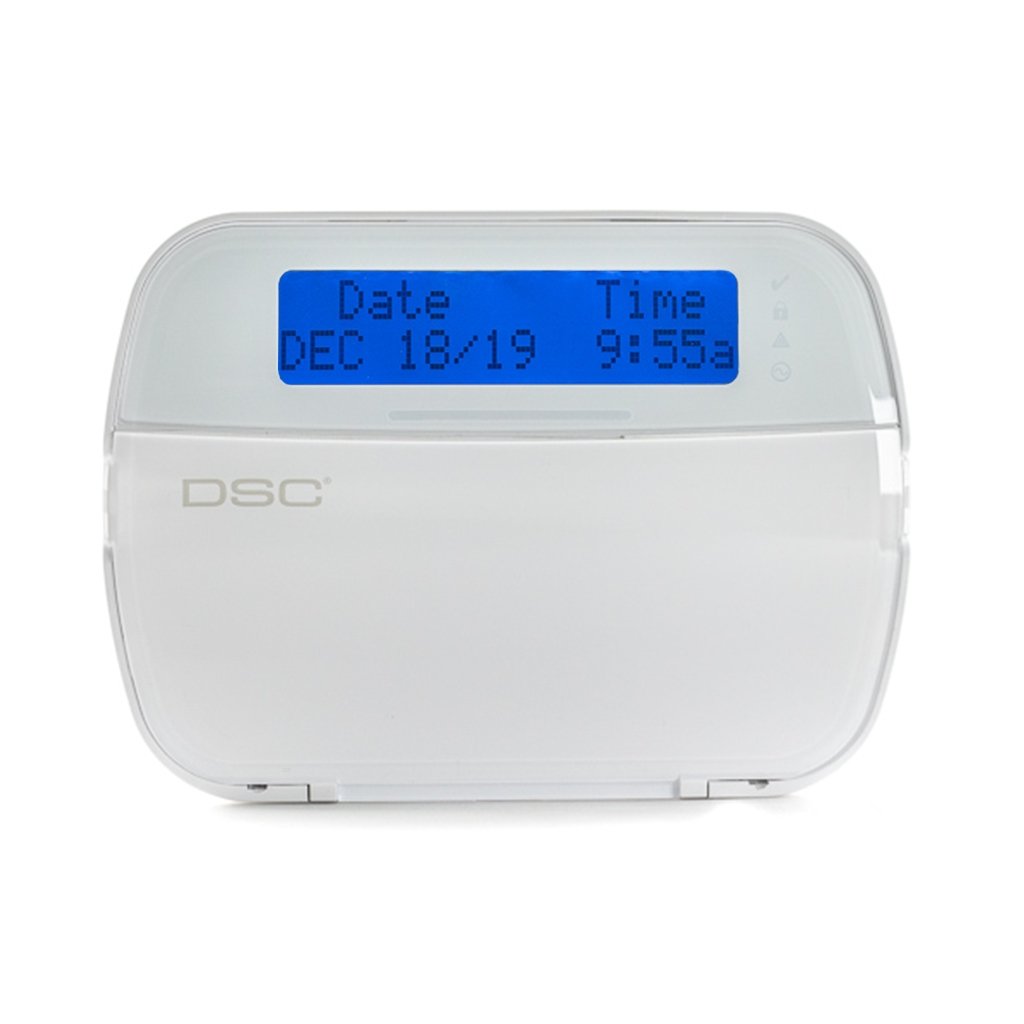

DSC PowerSeries NEO HS2LCDPENGN Full Message LCD Hardwired Keypad with English function keys and Prox Support
DSC PowerSeries NEO HS2LCDPENGN Full Message LCD Hardwired Keypad with English function keys and Prox Support
This latest version with the "N" suffix is now compatible with both the DSC PowerSeries Neo and the PowerSeries Pro alarm panels.
PowerSeries NEO keypads have several features that make them a great add-on to your NEO burglary detection system. Some of these features include five programmable keys for instant one-button activation of important NEO system functions. The keypads also feature a quick exit feature that alleviates the user's need to disarm and then rearm the system whenever they leave the building.
The HS2LCDPENGN full message keypad is the newest in alpha-numeric readout keypads for the DSC NEO burglary systems. These keypads are what we recommend for a primary keypad because of the ability of this keypad to read out alpha and numeric characters on the screen. With the 'ENG' designation, this keypad will have words on the keypad function buttons instead of icons. Since the DSC system's programming is in alpha-numeric characters, this keypad will make your programming job ten times easier than using one of the ICN keypads to program with.
The DSC HS2LCDPENGN also features a built-in proximity tag reader so that you, and other users, can use the tags to arm and disarm the system without having to punch in a code. The keypad will come with one proximity tag, and if you need to add more, check out the MPT8PK 8-pack we offer.
Specifications:
Dimensions:........ (L x W x D): 168mm x 122mm x 20 mm
(6 1/16" x 4 7/16" x 13/16")
LCD Viewable Area: .. 99 mm x 24 mm (3 9/10" x 15/16")
Current Draw: ............................................125 mA (Max)
HS2LCD/HS2LCDP/HS2ICN/HS2ICNP/
HS2LED............................................................100 mA
HS2LCDRF/HS2LCDRFP/HS2ICNRF/
HS2ICNRFP........................................................60 mA
Voltage: .................................................12 VDC Nominal
Operating Environment: ... -10°C to 55°C (14°F to 131°F)
Relative Humidity: ............................................. 5 to 93%
DSC HS2LCDPENGN Installation manual
DSC HS2LCDPENGN Quick manual
DSC HS2LCDPENGN Specifications sheet
Features
Menu programmingUp to 128 hardwired or wireless zones supported
Modern, slim-line landscape keypad
White backlit keys
Blue LCD display
5 programmable function keys
Proximity tag functionality (1 tag included)
Input/Output terminal
Fire, medical and panic keys
Adjustable backlight and keypad buzzer
Dual wall-mount and front cover tamper
Available with English function keys
