DSC LC-100-PI Digital PIR Motion Detector With Pet Immunity

$17.95 $22.99

Quick Overview
In Stock
Add to Wishlist

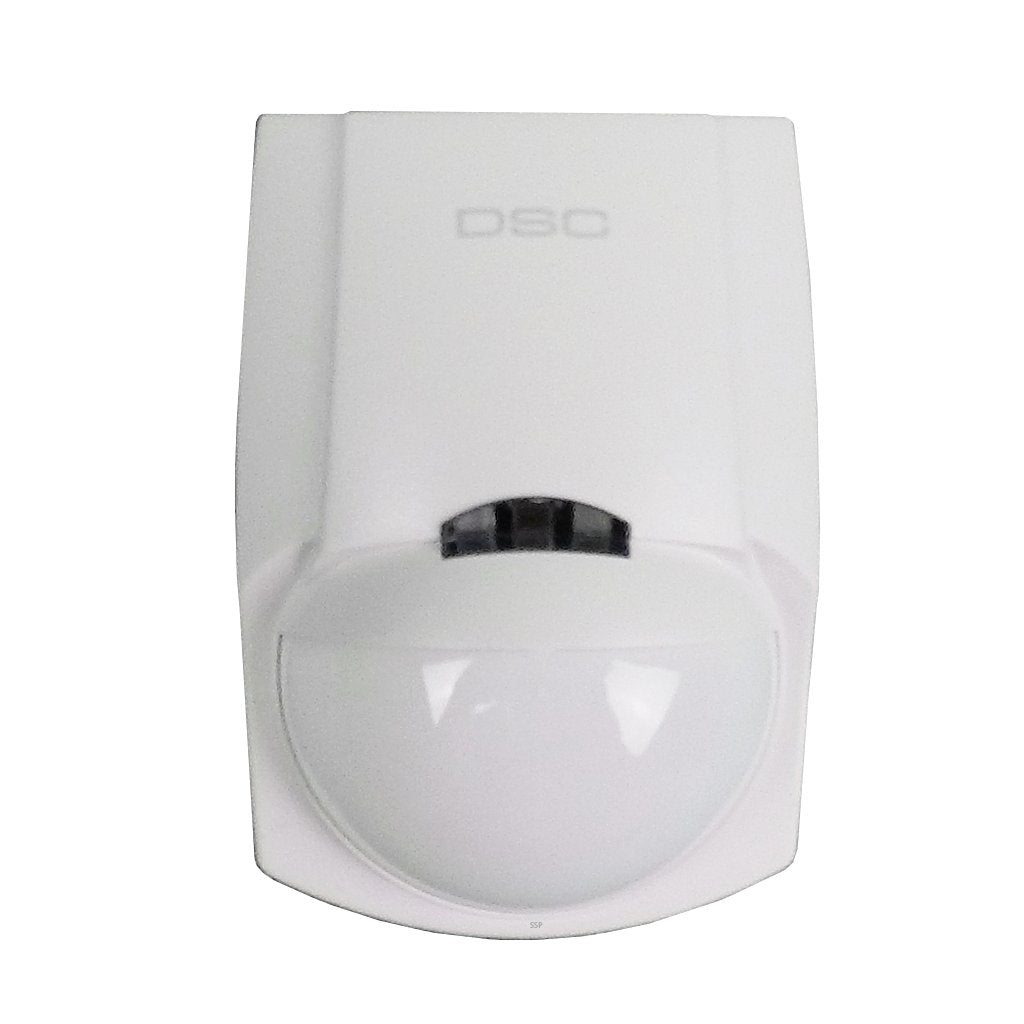

DSC LC-100-PI Digital Motion Detector With Pet Immunity

This is DSC's latest PIR with selectable pet immunity. This model is replacing the soon to be discontinued BV300 model. This new model is a much smaller and more attractive design than the previous BV-300 series. This motion is selectable as pet immune for pets up to 55 pounds.

Though this motion would be fine for small dogs or cats, we generally recommend a dual tech pet motion for pet applications, particularly our Optex MX40PI or the Honeywell DT-500 model as these feature the best in pet discrimination and handle larger pets as well.


Operating Voltage: 8.2 VDC to 16VDC.
Current Draw: 8ma standby, 10ma in alarm
Coverage: adjustable up to 40' x 55'
Size: 3.62 x 2.46 x 1.57"
Weight: 2.15 ounces

  • Form A NC alarm contact
  • Digital signal analysis
  • Pet immunity up to 55 lbs (25 kg)
  • Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets
  • Advanced ASIC-based electronics
  • Compact design for residential installations
  • Adjustable variable pulse count
  • PIR sensitivity adjustment
  • Height installation calibration free

LC-100 Installation manual


Ask a Question
  • Does DSC make a mounting bracket for LC-100-PI

    No, they do not.
