Honeywell 6160V Custom Alpha Security Keypad


Quick Overview
In Stock
Add to Wishlist

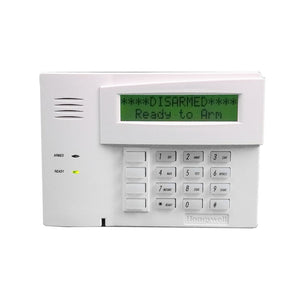

Honeywell 6160V Custom Alpha Security Keypad

Ademco 6160V Fixed English Talking Keypad is easy to install and users can record voice message for others to replay later. The Ademco 6160V has four programmable functions keys for fire, police, other emergency, or any other type of event you want programmed. The 6160V has a removeable door that hides the soft illuminated keys.

The four function keys on the left side of the keypad can be used for panic keys so that you may press these in case of an emergency such as a break in, fire or medical situation. The function keys are large, easily seen and accessible even when the front cover is closed.

The 6160V features voice annunciation of system status through its built-in piezo speaker and will speak the status and name, if you have labels programmed, of each zone associated with the system. This is a great feature allowing you to know what is going on with the system without having to continually go to the keypad to check.


5-5/16"H x 7-3/8"W x 1-3/16"D
(135mm x 190mm x 30mm)

Activated Transmission-160mA

- (Black): Ground
+ (Red): +12 VDC (Aux. Power)
D1 (Green): Data in to control panel
D0 (Yellow): Data out from control panel

Fully compatible with all VISTA controls.


  • Speaks system status and zone information
  • Zones and system events displayed in plain English
  • Family message center
  • Large, easy-to-use keypad
  • No confusing blinking lights
  • Four programmable function keys
  • Keys continuously backlit for visibility
  • White with removable door; fits any decor

6160V Installation manual
6160V User manual
6160V Data sheet
