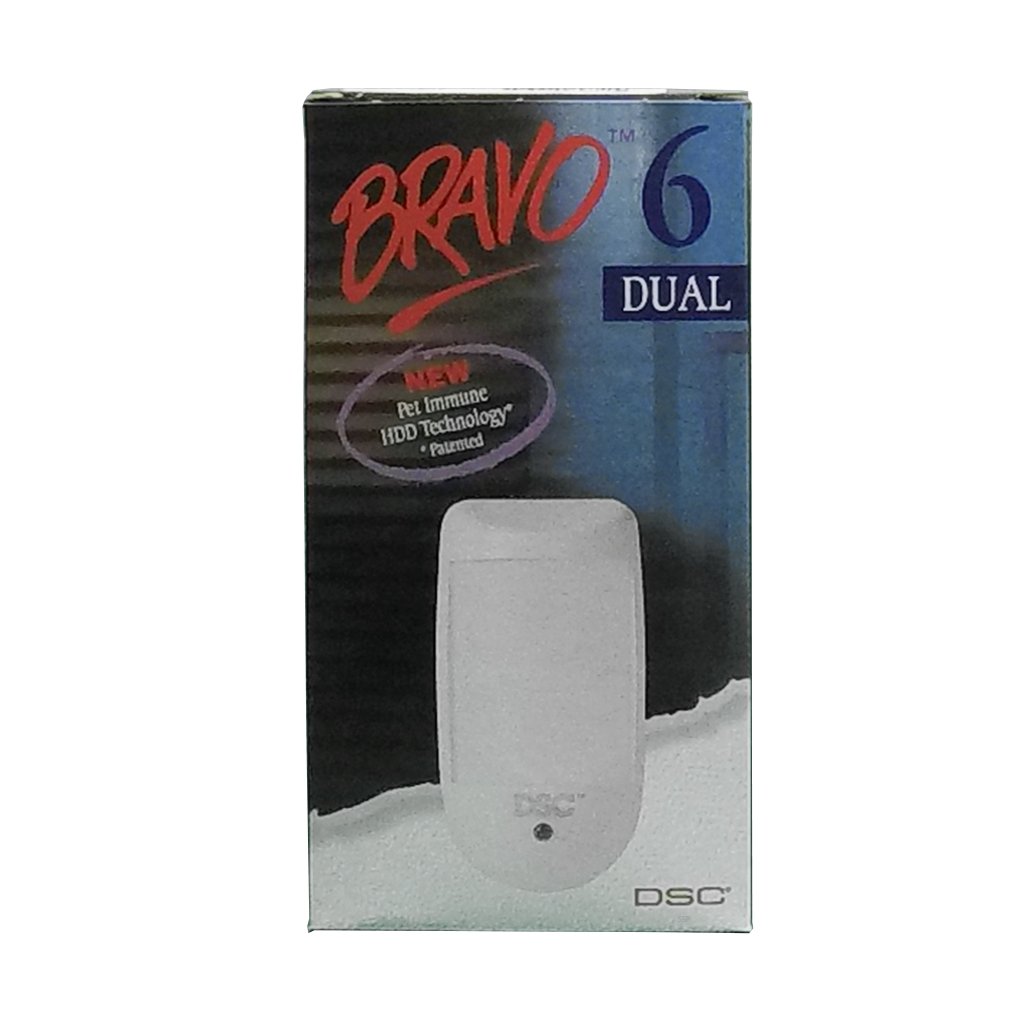

DSC BV600 Bravo 6 Dual Lens Motion Detector

$56.95

Quick Overview
In Stock
Add to Wishlist

DSC BV600 Bravo 6 Dual Lens Motion Detector

The BV600 is an awesome motion detector that features a dual lens operation which cuts down on false alarms from pets. The lens in the BV600 is designed to be able to differentiate between humans and small animals.

This has a built in noise-cancelling feature that keeps the detector from being set off by radio interference as well. It can also sense differences between a person and the background temperature of a room so that an intruder just can't blend into the room that they're breaking into.

Specifications

PIR Detectors

Yes
Dual/ Quad Technology

Dual Technology Detectors
Coverage/ Range m

12.2 x 15.2
Angle of Detection o

100
Pet Tolerance

Yes
Temperature Compensation

Yes
Wall/Ceiling Mount

Wall/Corner/Ceiling Mount
Electrical Specifications

Power Supply: 9 ~ 14 V
Physical Specifications

Dimensions mm: 125 x 70 x 45
Environmental Specifications

Operating Temp oC: 0 ~ 50
Power Consumption

17.5 mA



BV600 Installation manual

QUESTIONS & ANSWERS

Ask a Question

  • does the unit have battery backup

    This is a hardwired motion so it gets it's backup power from the main alarm system battery.
